AmazingContainer™ EC-N-20FT Innovative Design Luxury Modular Villa: Premium Wood-Texture Retreat
A stunning 37m² (400 sq. ft.) residential-grade modular residence featuring zero-maintenance wood-texture metal siding and panoramic glass walls.
Features
Elevate Your Landscape with the 20ft Elite Flat-Roof Series.
The AmazingContainer™ 20ft Elite Series redefines modular aesthetics with its signature wood-grain metal carved siding and reinforced black structural frame. This 37m² (approx. 400 sq. ft.) turnkey residence offers the perfect fusion of natural warmth and industrial durability.

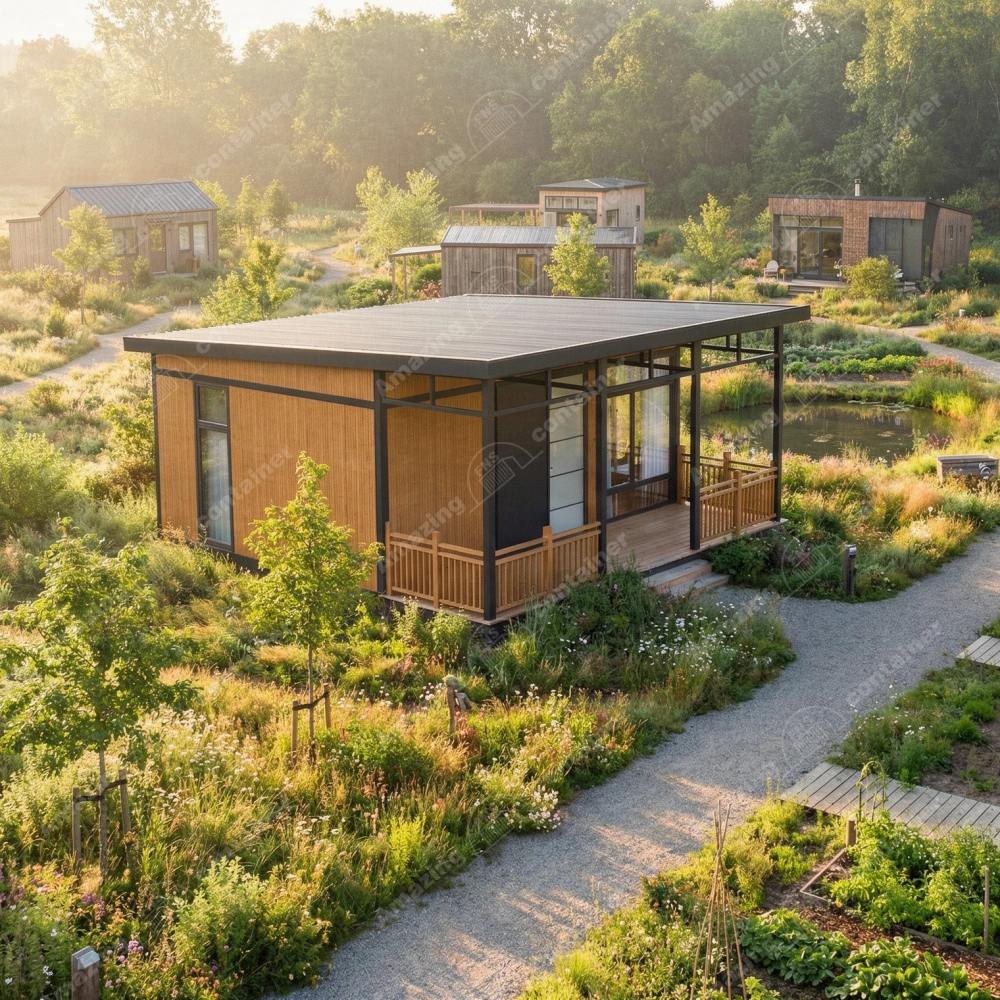

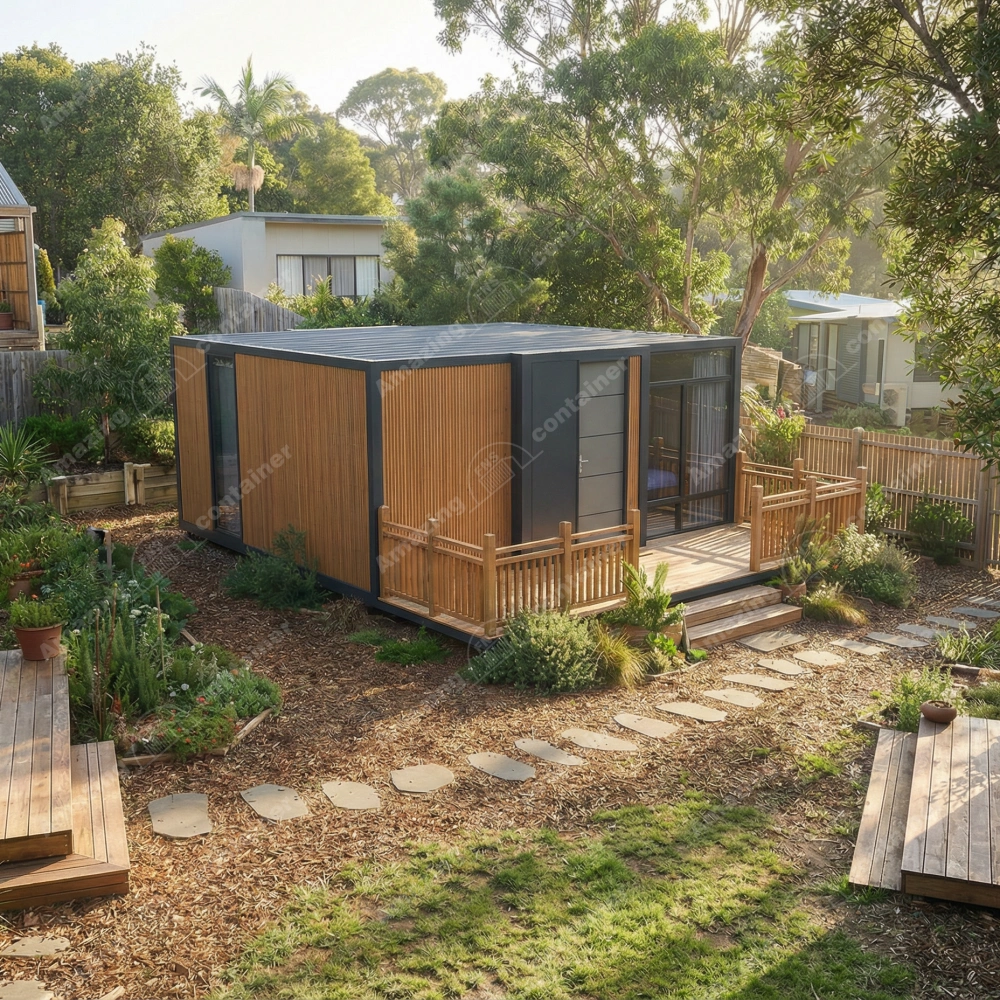

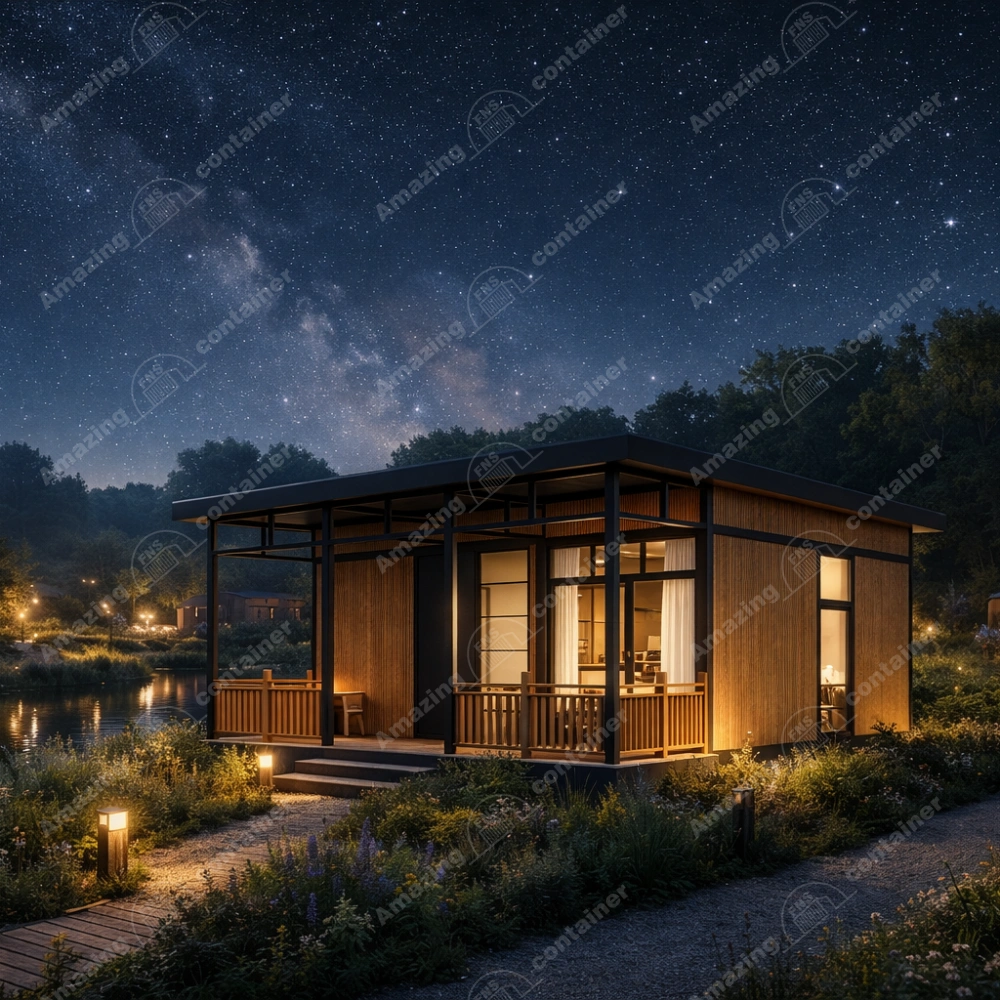

Unlike traditional units, the modern flat-roof design provides a minimalist, high-end profile ideal for luxury Airbnb rentals, professional backyard offices, or scenic vacation cabins. Arrives 90% pre-finished with integrated plumbing and electrical systems, allowing for full setup in under 60 minutes. Experience high-performance insulation and residential comfort without the stress of permanent construction.
-
Aesthetic Wood-Texture Metal Siding: Get the high-end look of natural timber with the fire-rated (A2), zero-maintenance benefits of premium carved metal panels.
-
Panoramic Indoor-Outdoor Flow: Full-height, double-pane sliding glass doors maximize natural light and capture the beauty of your surroundings.
-
Integrated Decking Compatibility: Specifically designed to integrate with modular wooden porches (as shown) to expand your functional outdoor living area.
-
Climate-Shielded Efficiency: Built with heavy-duty galvanized steel and high-R-value insulation, providing a quiet, energy-efficient harbor in any weather.
The choice of floor plan layout

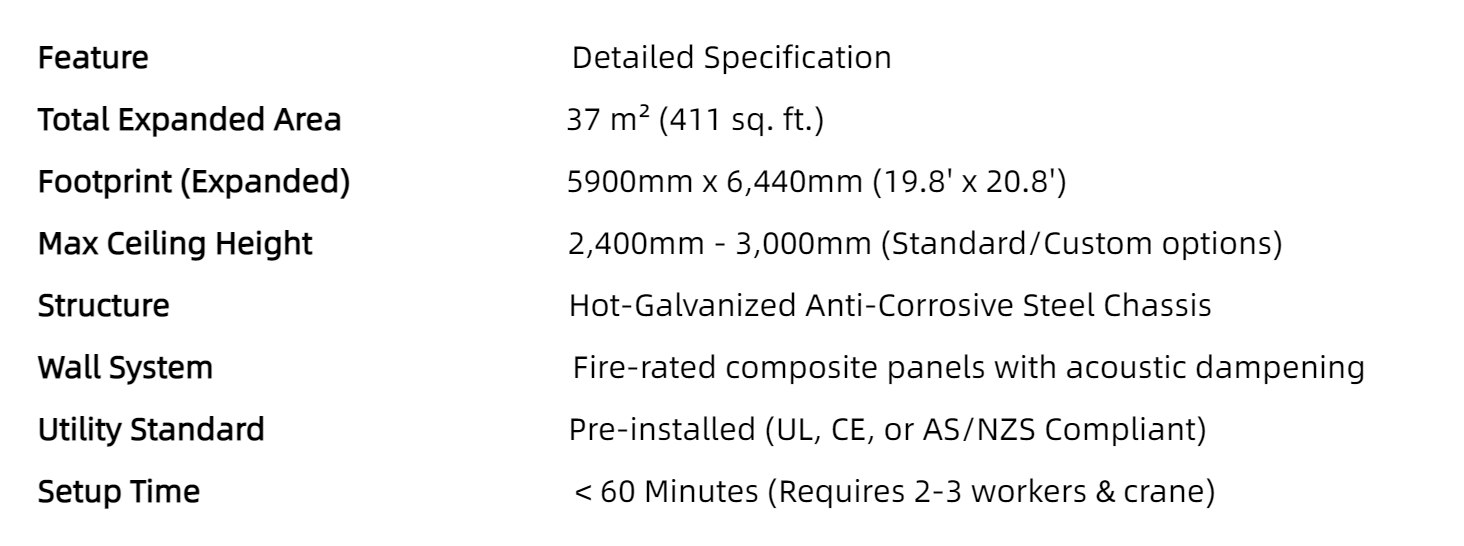

AmazingContainer™ Innovative Design Luxury 20ft Modular Villa: Premium Wood-Texture Retreat | Full Technical Specifications
1. Advanced Roofing System
-

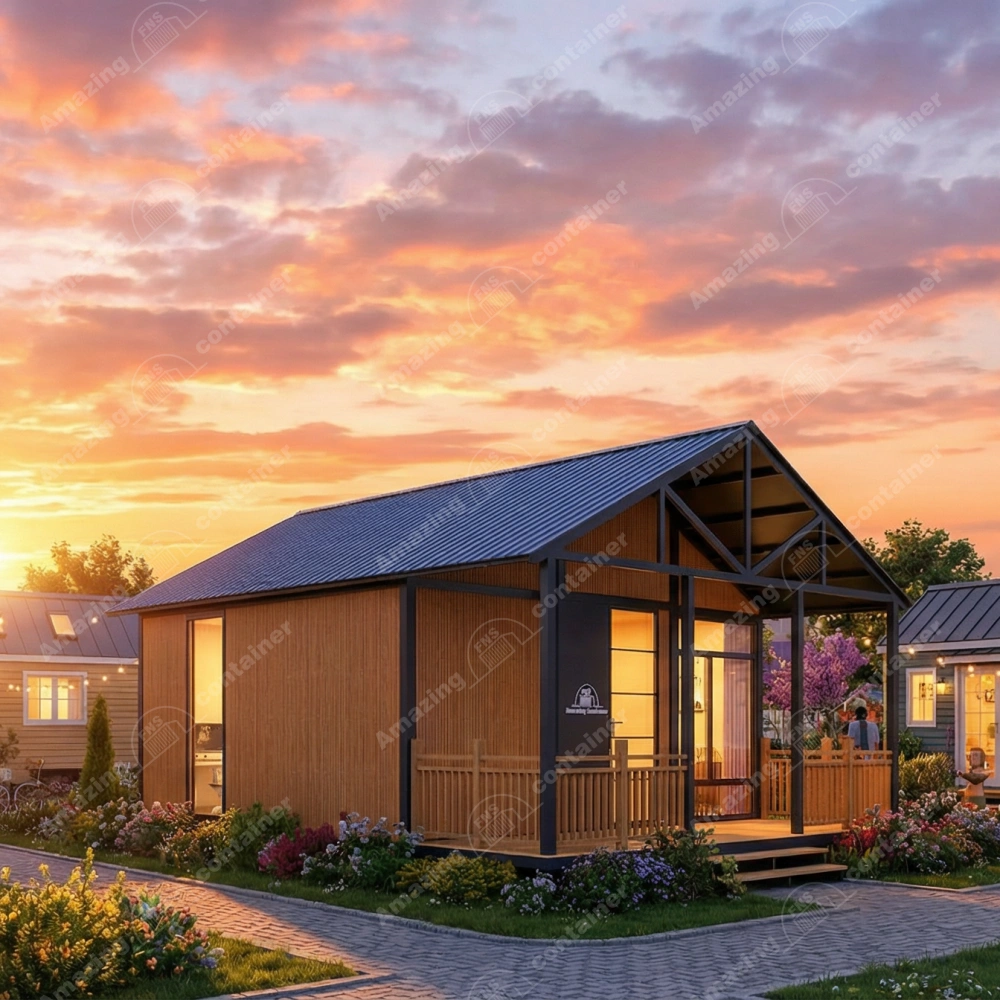

Roof Design: Architectural-grade asymmetrical sloped (pitched) roof. Specifically engineered for superior water drainage and debris shedding.
-
Material: 0.45mm – 0.50mm Corrugated Color-Coated Galvanized Steel veneer for maximum weather resistance.
-
Insulation Core: High-density 65mm EPS steel composite (PU/Rockwool options available) with integrated vapor barrier.
-
Performance: Rated for heavy snow loads and torrential rain. The 6%–10% gradient prevents water pooling and ensures zero-leak integrity at folding seams.
-
Gutter Integration: Hidden perimeter drainage channels to direct water away from the foundation.
2. Structural Engineering
-
Chassis & Frame: Heavy-duty Q235B Hot-Galvanized steel framework.
-
Anti-Corrosion: Electrostatic powder-coated finish with a marine-grade rust protection layer.
-
Folding Mechanism: Industrial 130mm galvanized precision embedded hinges with thick weather-stripping.
-
Wind Rating: Grade 11 (Up to 28.4 m/s).
-
Seismic Resistance: Magnitude 8.0.
3. Living Dimensions & Layout
-
Total Expanded Footprint: 5900mm (L) × 6440mm (W) × 2480mm (H).
-
Total Usable Living Area: Approx. 37m² (400 sq. ft.).
-
Transport Configuration (Folded): 5900mm (L) × 2200mm (W) × 2480mm (H).
-
Shipping Compatibility: Optimized for 2 units per 40HQ ocean container.
4. Wall & Thermal Envelope
-
Standard Siding: 65mm fire-rated EPS Color Steel Composite Panels (White horizontal lap siding finish as shown).
-
Fire Rating: Class A2 (Flame retardant).
-
Acoustics: Multi-layer construction providing up to 45-60dB noise reduction, ideal for quiet home offices or art studios.
5. Luxury Fenestration
-
Main Entrance: Double-pane Tempered Glass French doors with bold black aluminum alloy frames.
-
Windows: Residential-grade black aluminum sliding/casement windows with high-density insect screens.
-
Glass Type: 5mm + 12A + 5mm double-glazed tempered safety glass with Low-E coating option.
6. Interior & Utility Integration
-
Flooring: 18mm high-density sustainable bamboo fiber board + 4.0mm SPC Luxury Stone-Plastic Flooring.
-
Electrical System: Built-in hidden conduit, pre-wired for UL (US), CE (EU), or AS/NZS (AU/NZ) compliance.
-
Plumbing: Pre-installed PPR hot/cold water supply and PVC drainage with integrated P-trap for odor protection.
-
Bathroom Suite: Integrated shower, low-flow toilet, and designer vanity cabinet included.
📏 Size-Specific Dimensional Table
| Specification | 20ft Micro | 30ft Standard | 40ft Elite |
| External (Expanded) | 5900 x 6440 x 2480 mm | 9000 x 6440 x 2480 mm | 11800 x 6440 x 2480 mm |
| Internal (Expanded) | Approx. 410 sq. ft. | Approx. 603 sq. ft. | Approx. 822 sq. ft. |
| Shipping State | 5900 x 2200 x 2480 mm | 9000 x 2200 x 2480 mm | 11800 x 2200 x 2480 mm |
| Weight | ~4,800 kg | ~5900 kg | ~7,300 kg |
| Ideal Use | Gym/Office/Pods | Guest Room/Airbnb | Family Home/Dorm |
🎨 Customizable Finishes
-
Exterior Options: Wood-Grain Metal Carved Panels, WPC Wood Slats, Modern Grey Metal Siding.
-
Interior Options: Carbon Crystal Panels, Bamboo Fiber Walls, Matte Pearl Finishes.
🚛 Global Logistics
-
Container Efficiency: 2 x 20ft units per 40HQ;
-
Setup Method: This unit can be easily unfolded by two adults; under 60 minutes for full deployment.
