AmazingContainer™ EC-N-40FT Innovative Design Expandable Home with Gabled Roof 76m² / 818 sq. ft.)

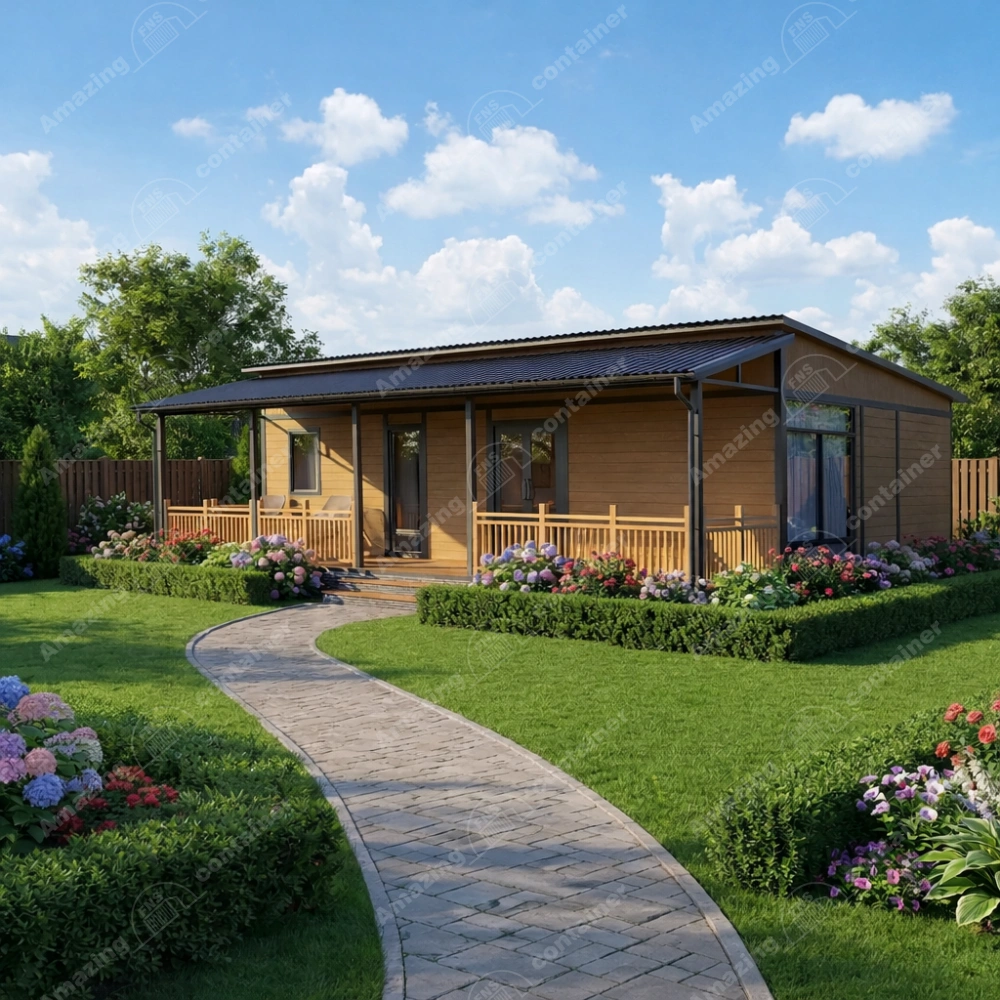

AmazingContainer™ Luxury 40ft Wood-Clad Modular Home
Features

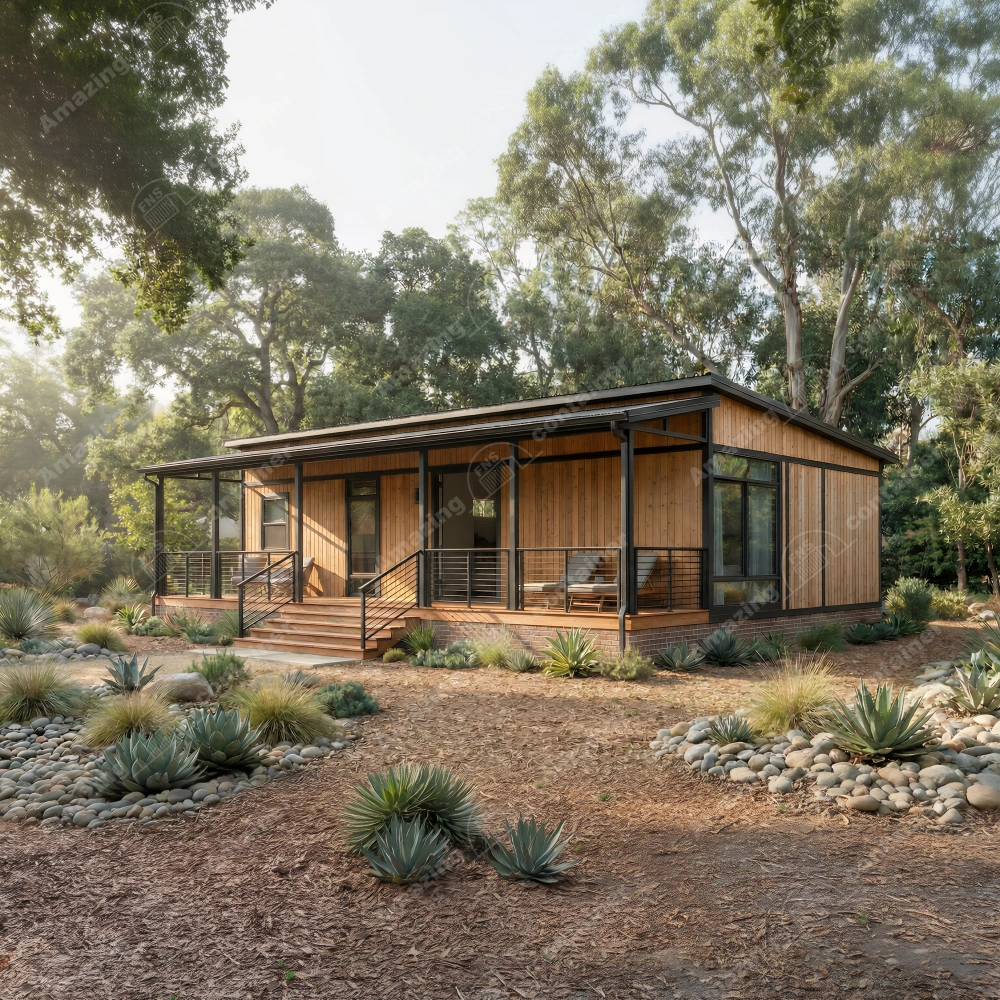

Redefine Large-Scale Living with the 40ft Elite Series.
The AmazingContainer™ 40ft Elite Series delivers a massive 76 m² (818 sq. ft.) of high-performance modular living space. Engineered as a permanent residential alternative, this unit features extraordinary max ceiling heights of 2400mm (7’87”) and a full-scale veranda for seamless indoor-outdoor flow.
Built on a Hot-Galvanized Anti-Corrosive steel chassis with fire-rated, acoustic-dampening walls, it provides a safe and quiet haven in any climate. Designed for rapid deployment (< 72 hours), it is the ultimate choice for Backyard Granny Flats (ADUs), Off-Grid Family Homes, and Executive Staff Housing. Fully compliant with UL, CE, and AS/NZS utility standards.
-
Expansive Great Room Floorplan: Features a grand 818 sq.ft footprint, providing enough room for 3-4 separate bedrooms or a massive open-concept commercial layout.
-
Residential-Grade Verticality: The unique high-ceiling design (up to 2.4m) eliminates the “container feeling,” offering the spatial volume of a traditional site-built villa.
-
Strategic Thermal & Acoustic Engineering: Integrated fire-rated panels with high R-value insulation and acoustic dampening for year-round comfort and privacy.
-
Infrastructure Ready: Comes pre-fitted with integrated MEP (Mechanical, Electrical, Plumbing) systems, allowing for quick site hook-ups to local utility grids.
The choice of floor plan layout

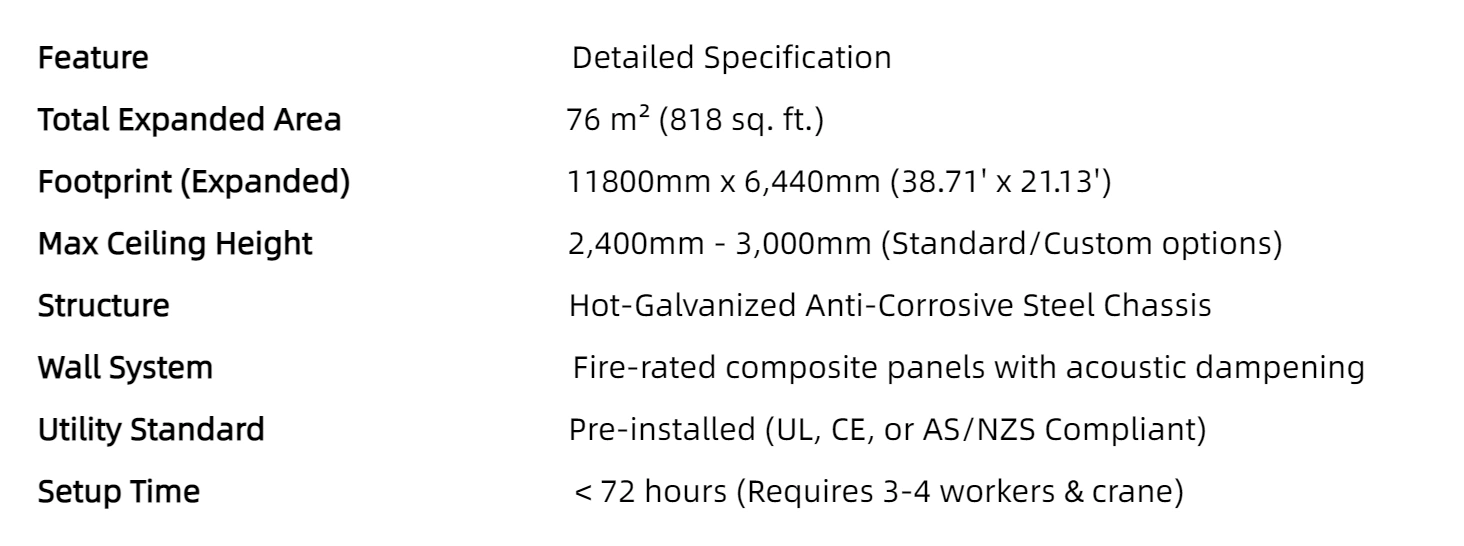

AmazingContainer™ 40ft Elite Series | Full Technical Specifications
1. Dimensional Analysis
-
Total Expanded Footprint: 11800mm (L) × 6440mm (W) × 2480mm (H) / approx. 38.71’ × 21.13’ × 7.87’.
-
Total Usable Living Area: 76 m² (818 sq. ft.) – One of the largest single-unit modular floor plans available.
-
Transport State (Folded): 11800mm (L) × 2200mm (W) × 2480mm (H).
-
Logistics Optimization: Optimized for 1 unit per 40HQ container, ensuring standard maritime handling.
-

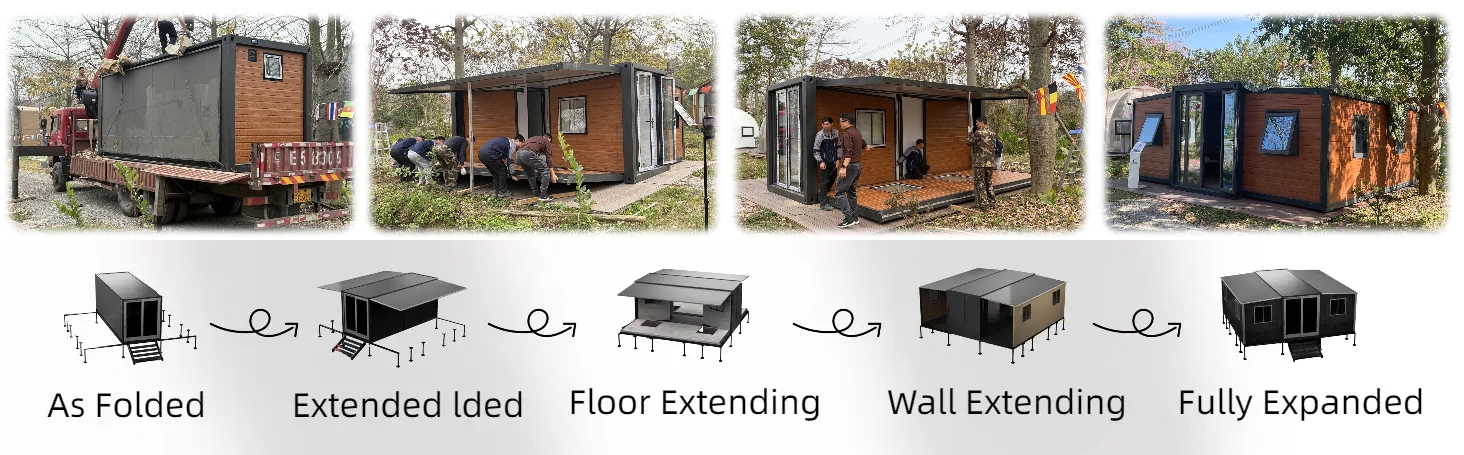

Expansion Method: Rapid crane-assisted deployment.
2. Structural Engineering
-

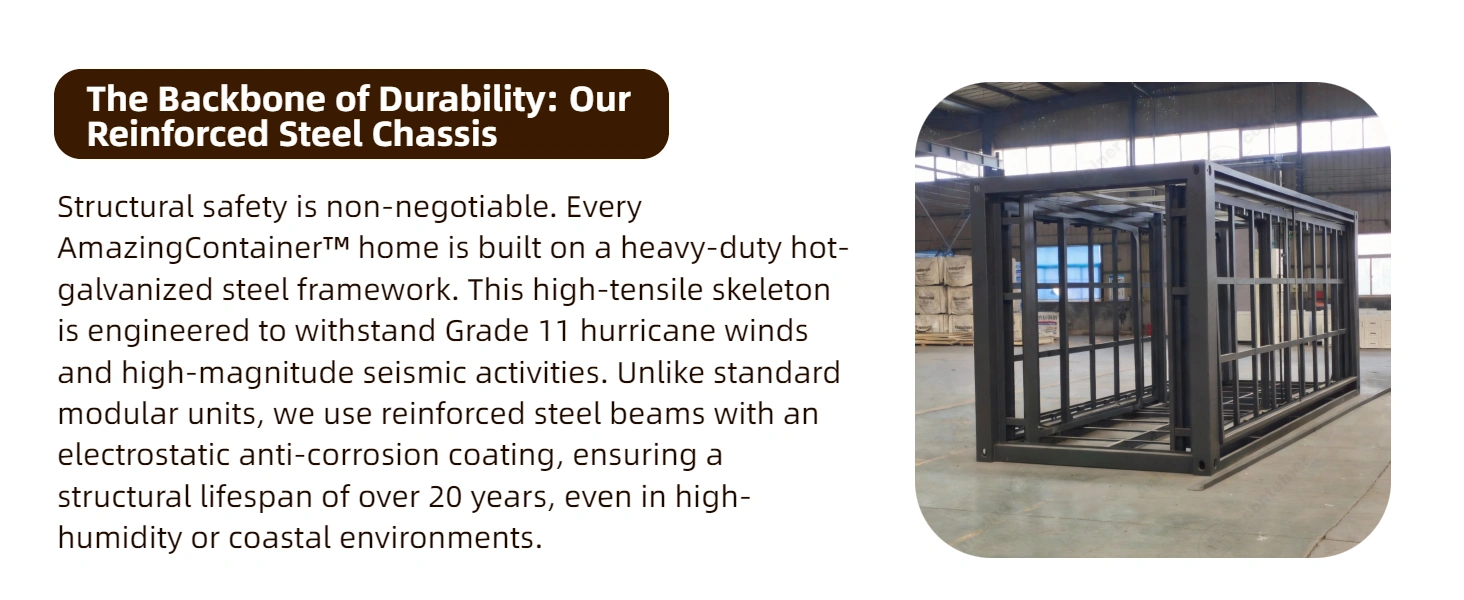

Main Chassis: Heavy-duty Hot-Galvanized Q235B Steel framework.
-
Surface Protection: Electrostatic powder-coated finish with multi-stage anti-corrosion protective layers.
-
Precision Hardware: Industrial-grade 130mm galvanized embedded hinges for lifelong structural stability and air-tightness.
-
Seismic Resistance: Magnitude 8.0 protection.
-
Wind Loading: Rated for speeds up to 28.4 m/s (Grade 11 / Category 1 Hurricane).
3. Roofing & Verticality
-
Max Ceiling Height: 2400mm (7’87”) at peak – Eliminates the “container feel” and provides a full-scale residential atmosphere.
-

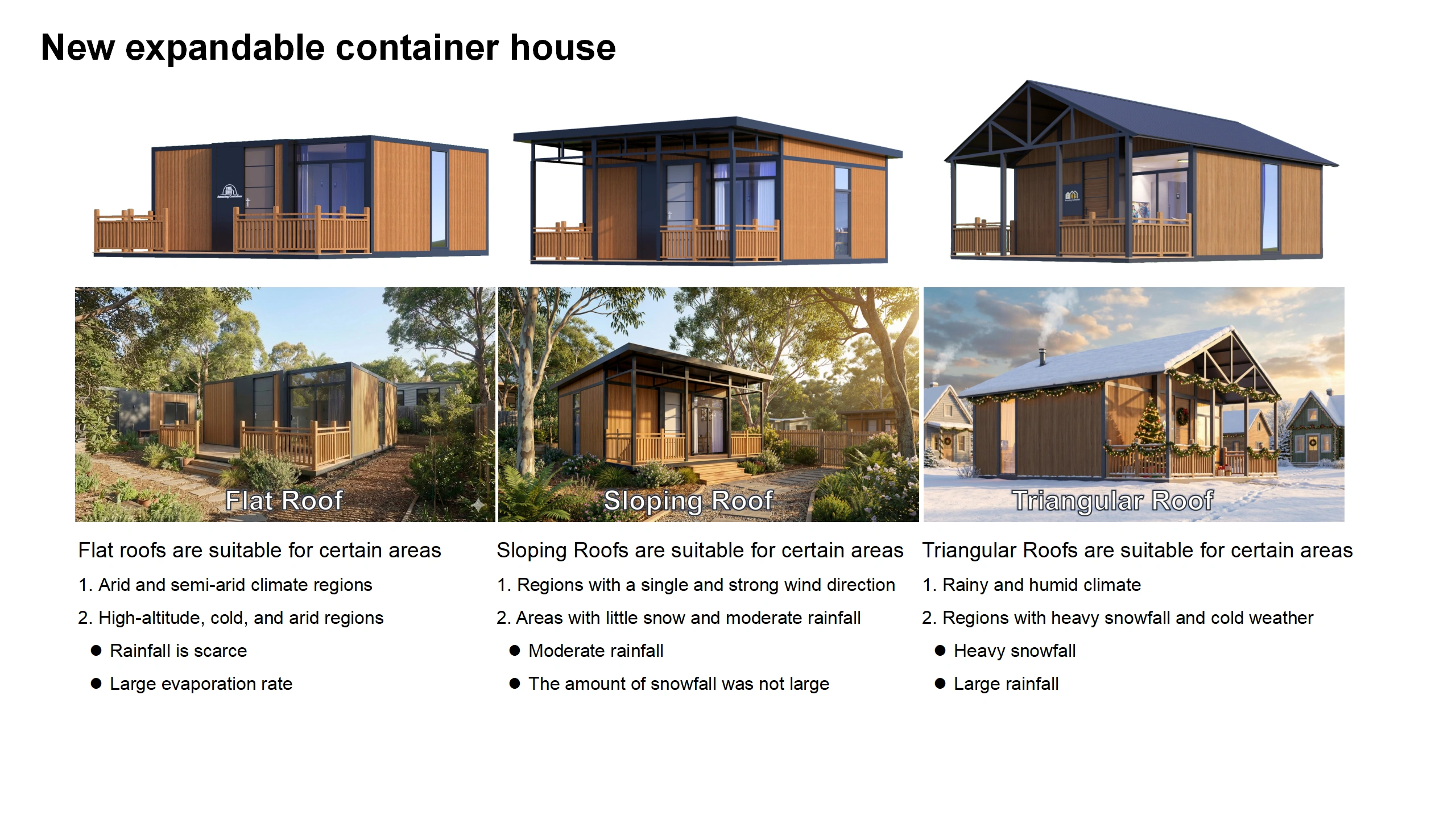

Roof System: High-density EPS/Rockwool composite roof with a 6% – 8% integrated slope for high-volume rain runoff.
-
Outer Roof Skin: 0.45mm – 0.50mm corrugated galvanized steel veneer with specialized weather-sealant at folding junctions.
4. Thermal & Acoustic Envelope
-
Wall Panels: 65mm–100mm fire-rated composite panels with internal vapor barriers.
-
Core Material: Flame-retardant EPS (Standard) / High-density Rockwool or PU (Premium upgrades for extreme climates).
-
Acoustic Insulation: Multi-layered wall structure achieves up to 60dB sound dampening, perfect for office or hotel use.
-
Fire Rating: Class A2 (Fire-resistant and non-combustible).
5. Luxury Fenestration
-
Main Entry: Thermal Break Aluminum alloy frames with wide-span double glass French doors.
-
Glass Specification: 5mm + 12A + 5mm double-paned tempered safety glass. (Low-E coating available for high-UV regions).
-
Locking Technology: Integrated heavy-duty handles with optional biometric fingerprint smart-locks.
6. Interior Finishes & Utilities
-
Flooring System: 18mm eco-friendly bamboo plywood substrate + 4.0mm – 8.0mm SPC Luxury Stone-Plastic Flooring (100% waterproof and termite-proof).
-

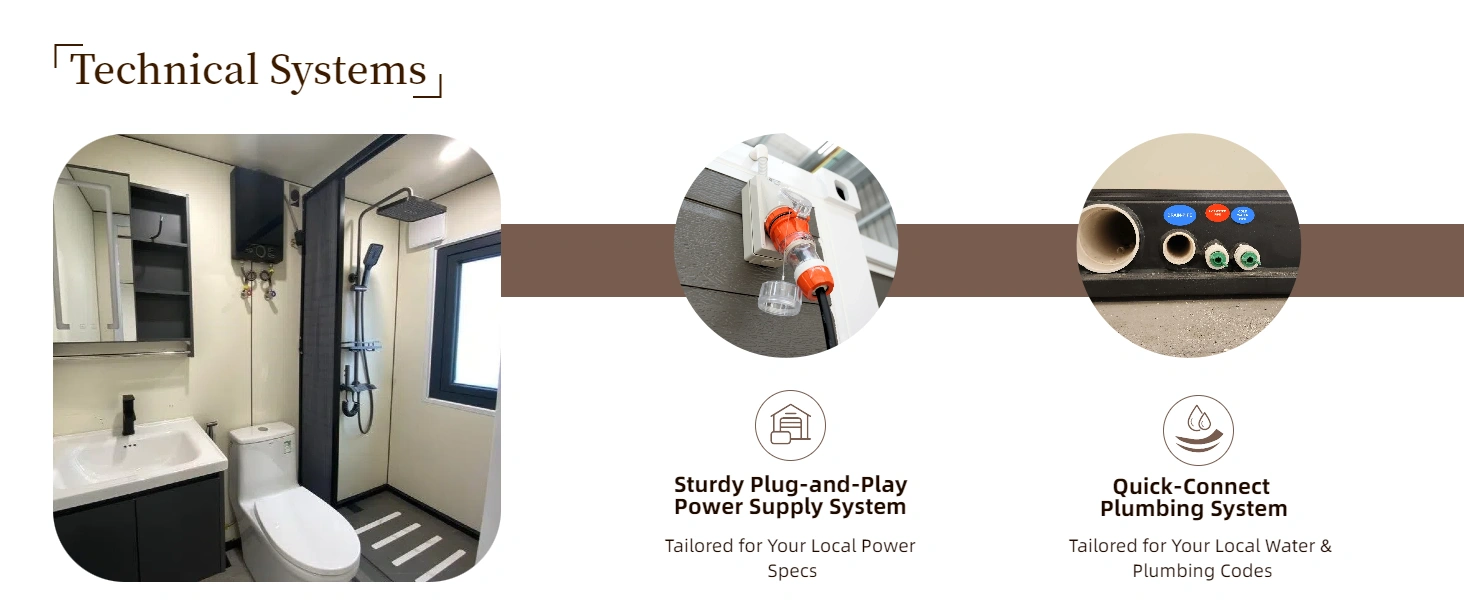

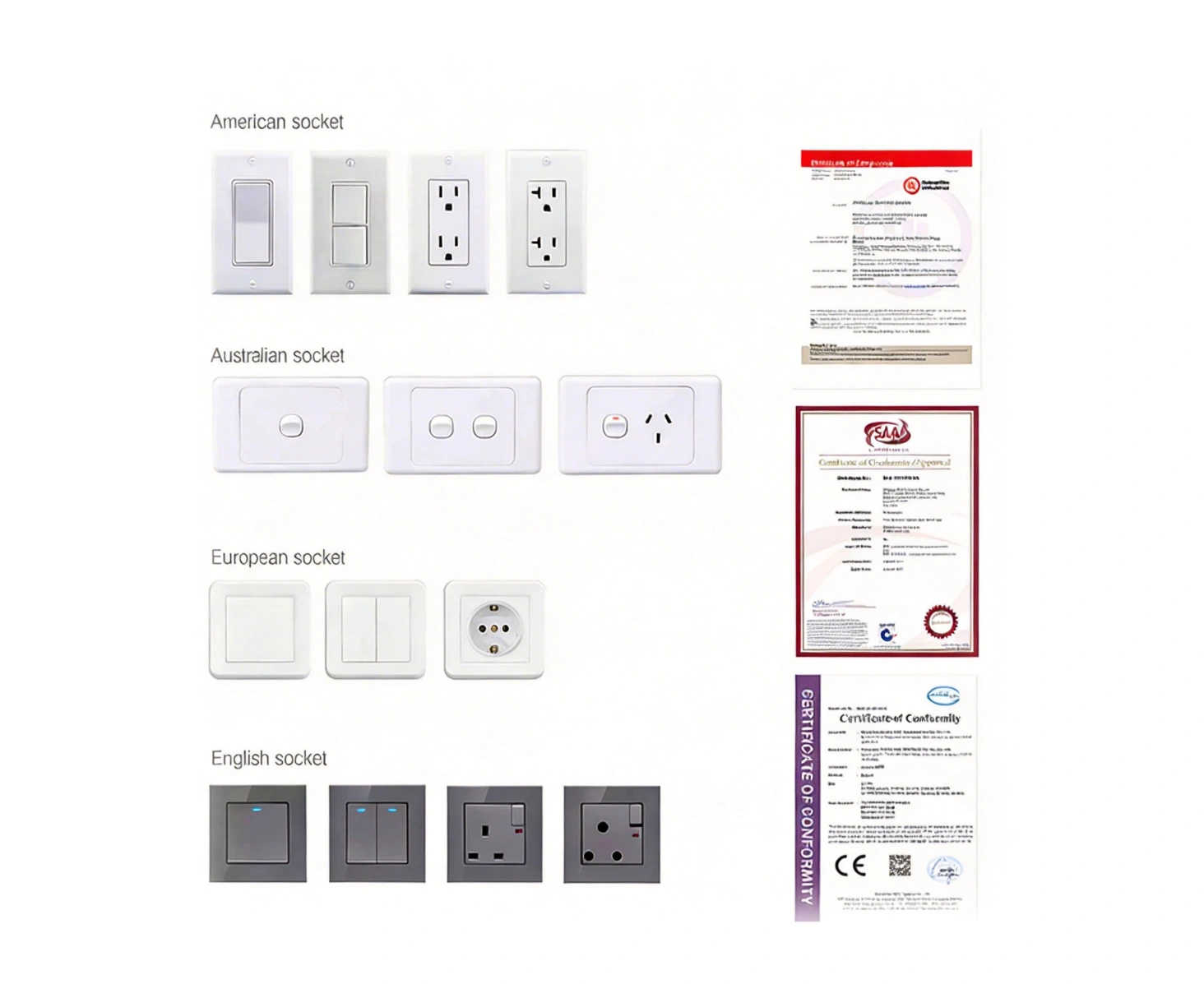

Electrical Standard: Pre-wired concealed circuitry; fully compliant with UL (US/Canada), CE (EU), or AS/NZS (AU/NZ) codes.
-
Plumbing: Standardized PPR hot/cold water supply and PVC drainage system with pre-fitted external connection ports.
-
Internal Dividers: Customizable fire-rated partition walls for up to 4 bedrooms + Great room configuration.

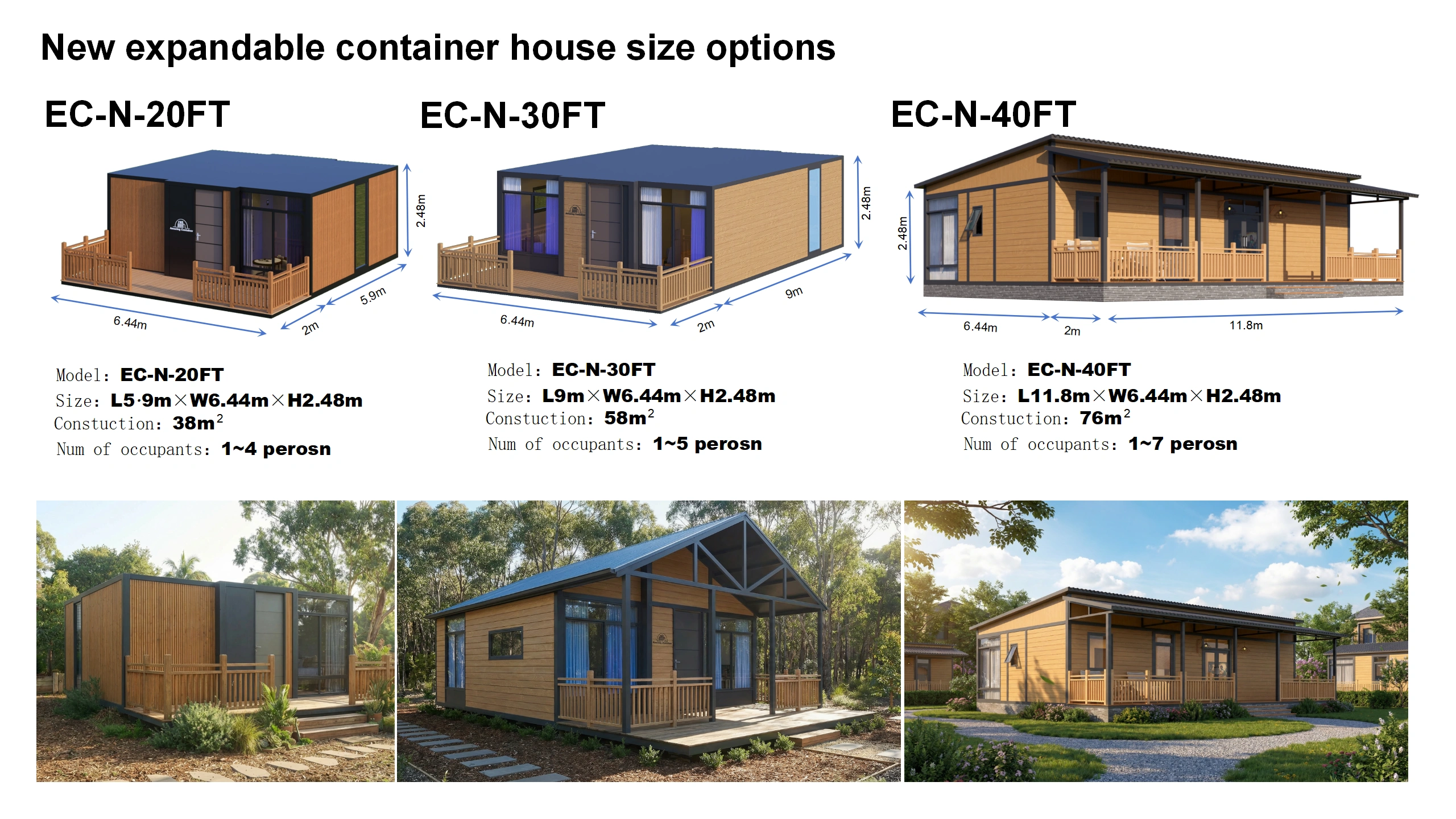

📏 Size-Specific Dimensional Table
| Specification | 20ft Micro | 30ft Standard | 40ft Elite |
| External (Expanded) | 5900 x6440 x 2480 mm | 9000 x 6440 x 2480 mm | 11800 x 6200 x 2480 mm |
| Internal (Expanded) | Approx. 410 sq. ft. | Approx. 603 sq. ft. | Approx. 818 sq. ft. |
| Shipping State | 5900 x 2200 x 2480 mm | 9000 x 2200 x 2480 mm | 11800 x 2200 x 2480 mm |
| Weight | ~5000 kg | ~6,800 kg | ~8,600 kg |
| Ideal Use | Gym/Office/Pods | Guest Room/Airbnb | Family Home/Dorm |
🎨 Customizable Finishes
-

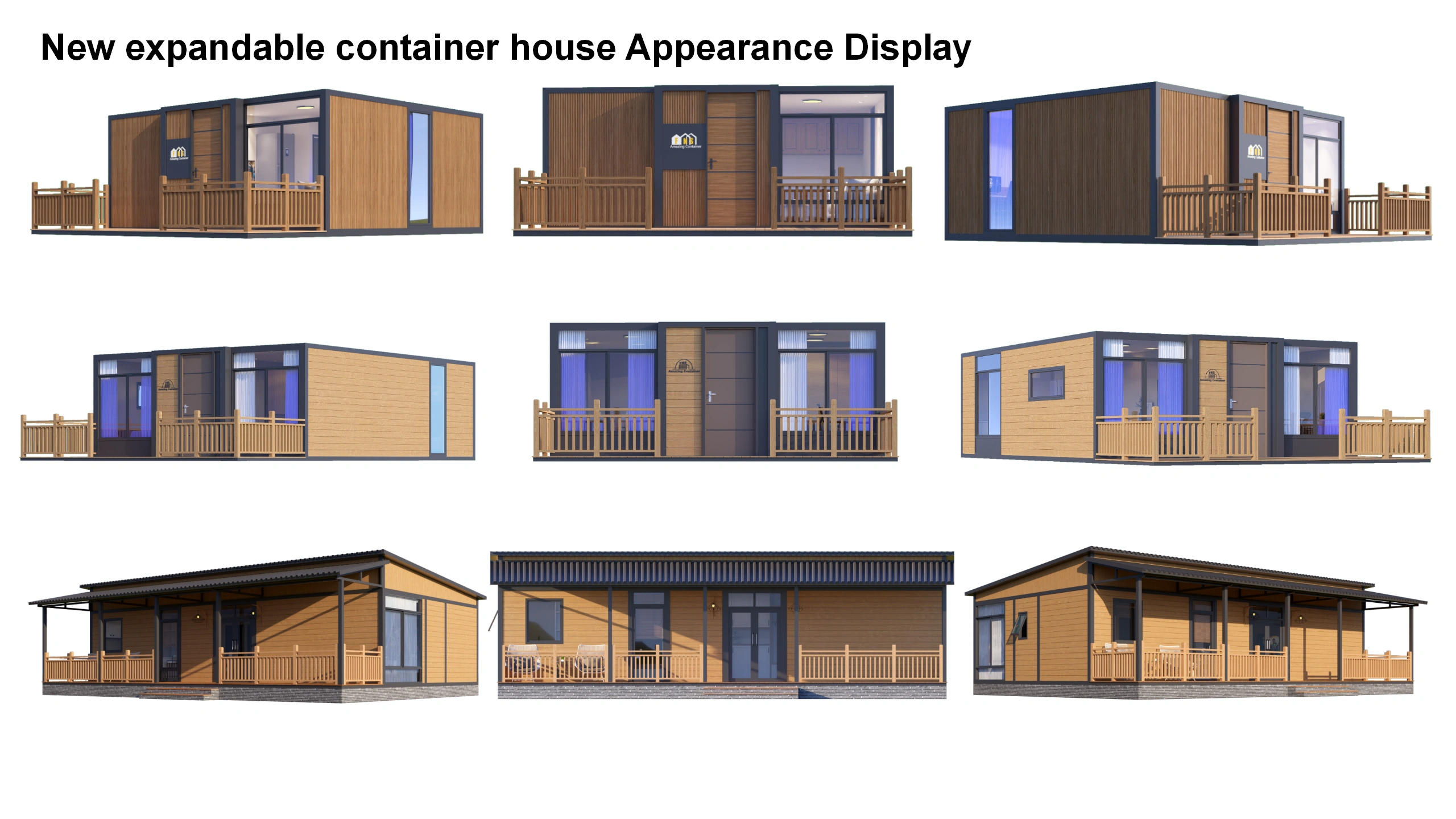

Exterior Options: Wood-Grain Metal Carved Panels, WPC Wood Slats, Modern Grey Metal Siding.
-

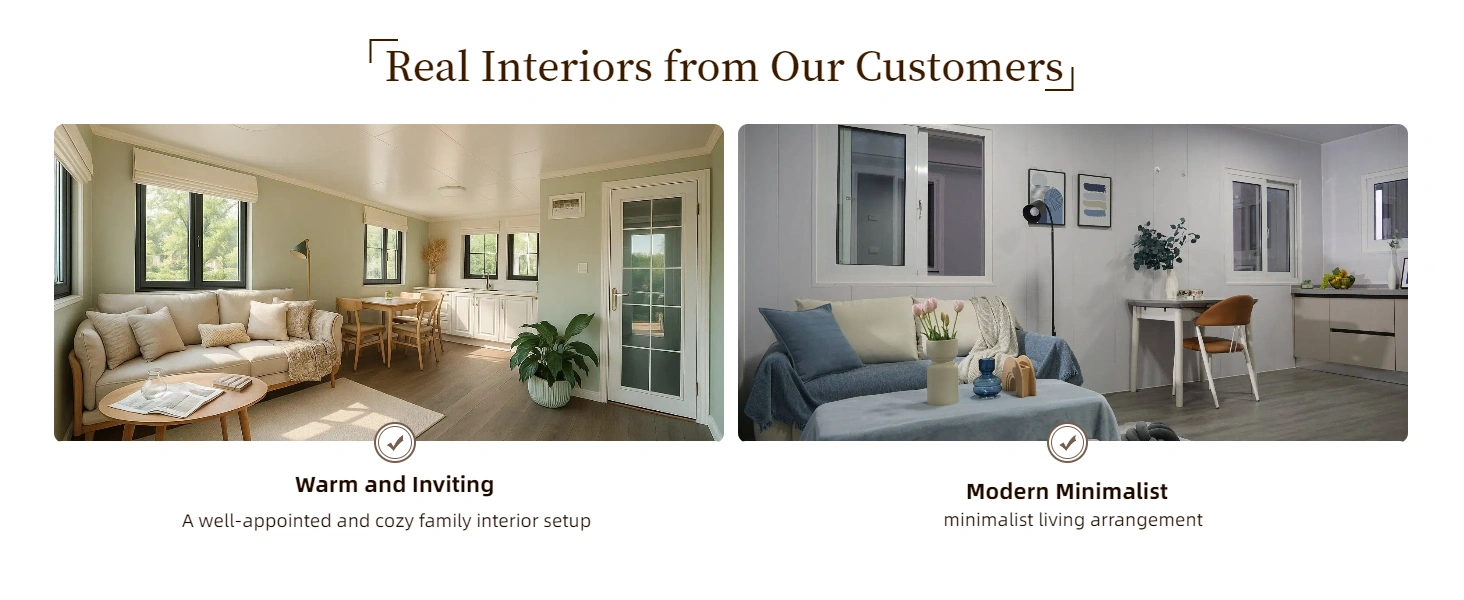

Interior Options: Carbon Crystal Panels, Bamboo Fiber Walls, Matte Pearl Finishes.
🚛 Global Logistics
-
Container Efficiency: 1 x 40ft units per 40HQ;
-
Setup Method: This unit can be easily unfolded by two adults; under 60 minutes for full deployment.
