AmazingContainer™ 10ft Luxury Expandable Home: Turnkey Modular Residence (18m² / 193 sq. ft.)-ADU
AmazingContainer™ 10ft Micro-Series: The Ultimate Multi-Purpose Compact ADU
Features
One Smart Footprint, Infinite Possibilities—From Professional Offices to Private Home Gyms.
The AmazingContainer™ 10ft Micro-Series is the world’s most versatile spatial solution for urban living. Engineered to fit into the tightest backyards or side-access lots, this 10ft unit expands into a generous living or working environment in under 30 minutes. Whether you are creating a secluded Home Office, a luxury Guest Suite, or a boutique Coffee Shop, our Micro-Series provides a residential-grade environment that outperforms traditional sheds and portable buildings.
1. Ultra-Compact Footprint with Dynamic Expansion
Don’t let the 10ft transport size fool you. Once deployed, the unit expands to nearly triple its width, offering a functional 18m² (approx. 193 sq. ft.) space. It is specifically designed for urban properties where a 20ft container is too large, making it the #1 choice for “Tiny Garden” architecture.
2. “One-Pod, Seven-Roles” Interior Versatility
The Micro-Series is a true chameleon. We offer 7+ pre-engineered internal layouts to suit your specific lifestyle needs:
-

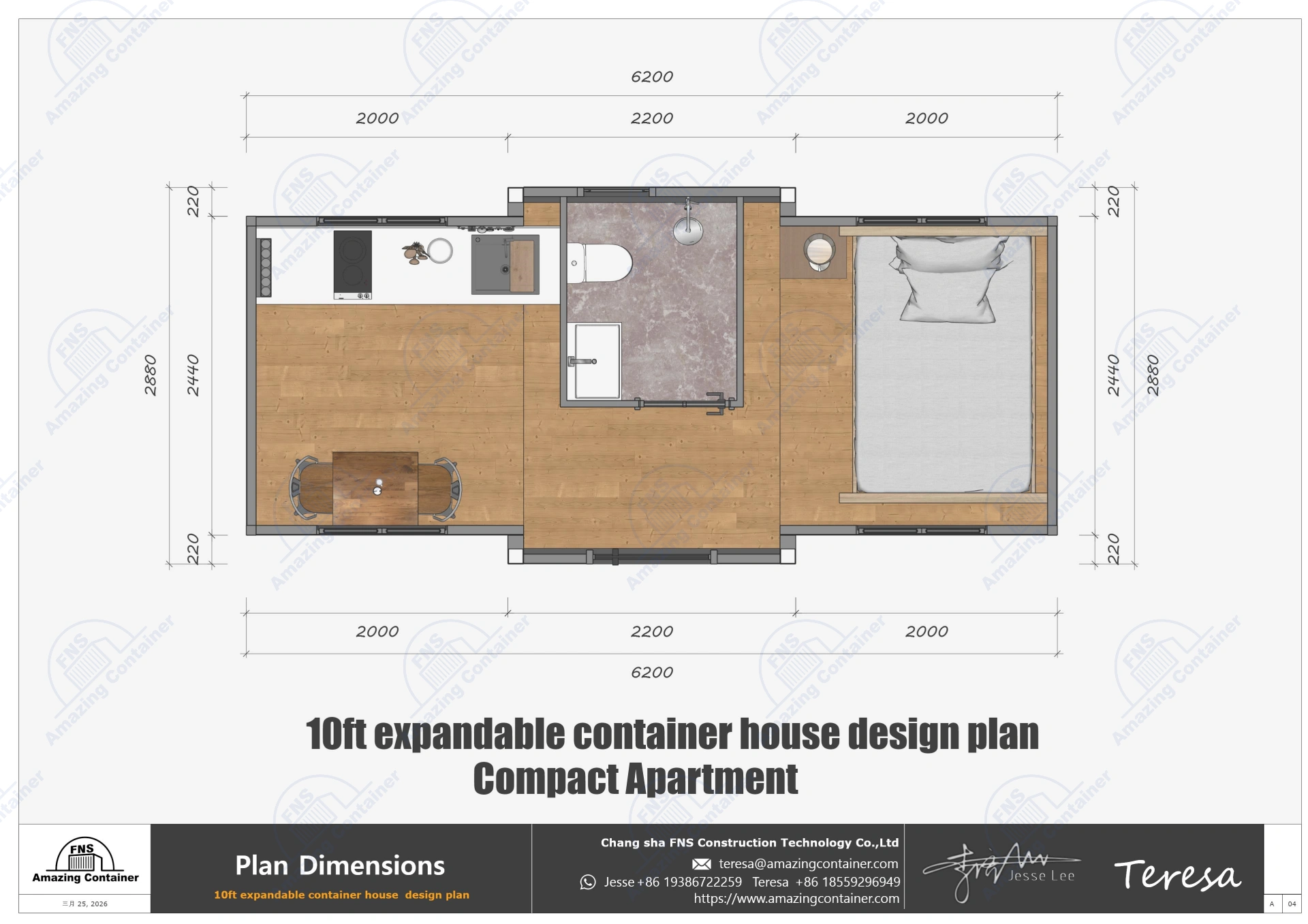

Compact Apartment: Full living amenities in a tiny footprint.
-

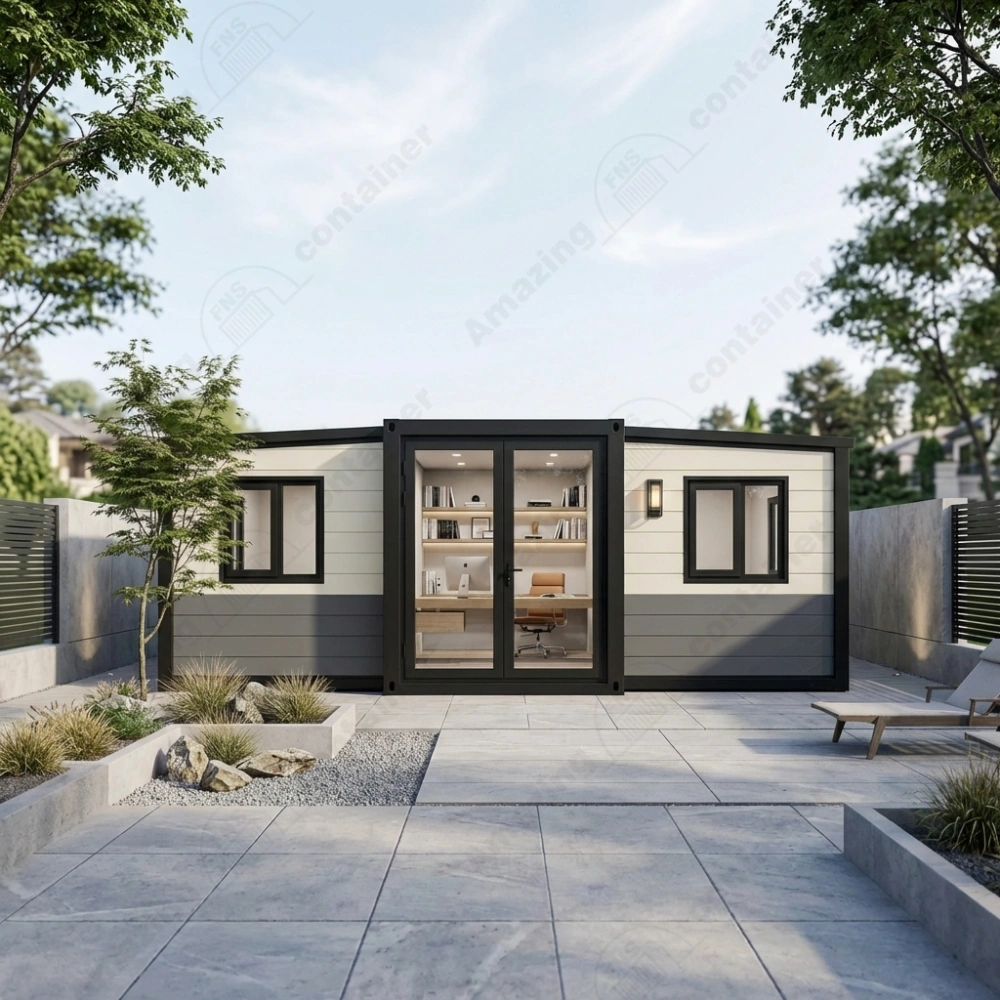

Home Office Shed: A soundproof, professional sanctuary for remote work.
-

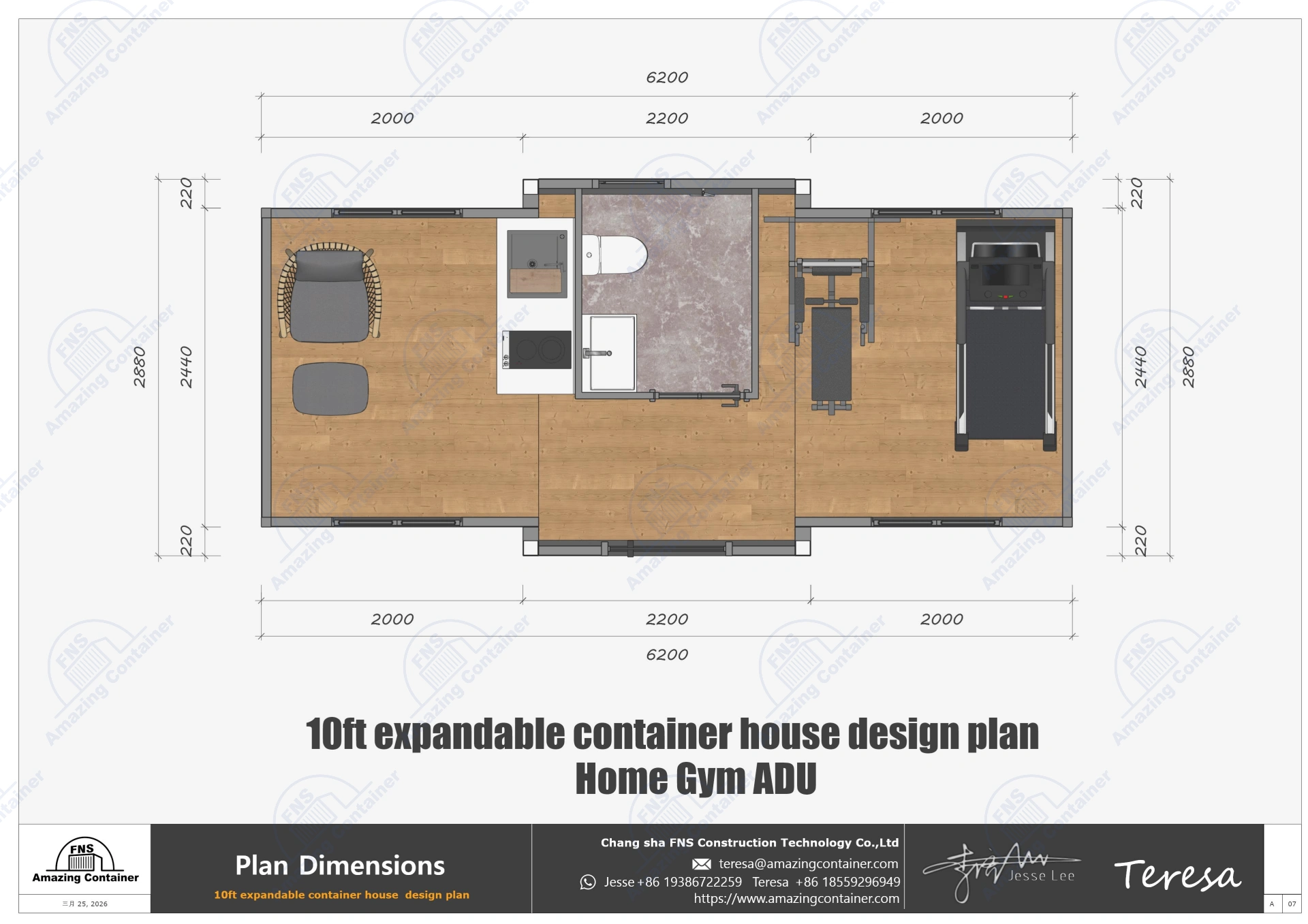

Home Gym ADU: Engineered for heavy equipment like treadmills and power racks.
-

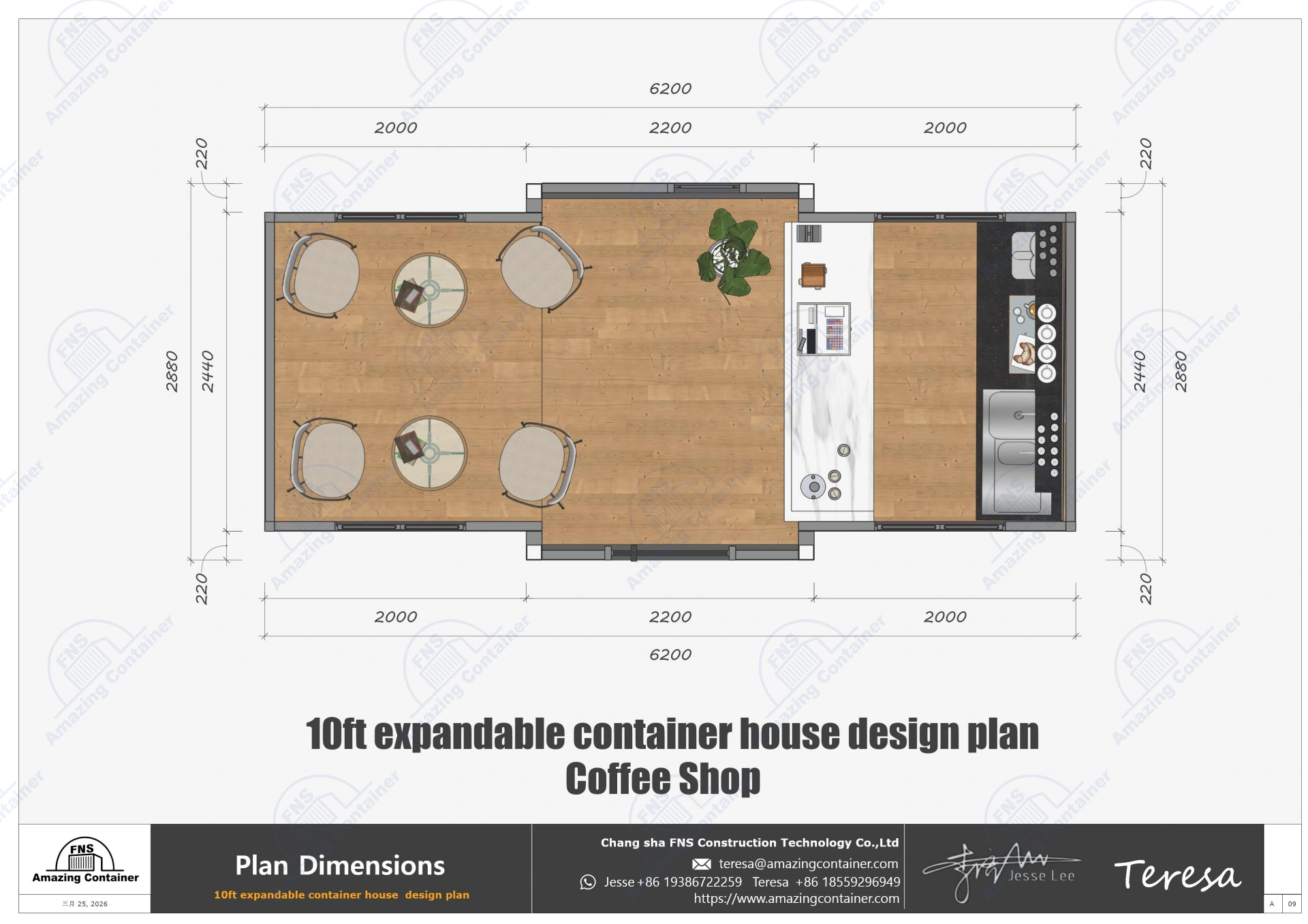

Coffee Shop / Pop-Up: Ready-to-trade commercial interiors.
-

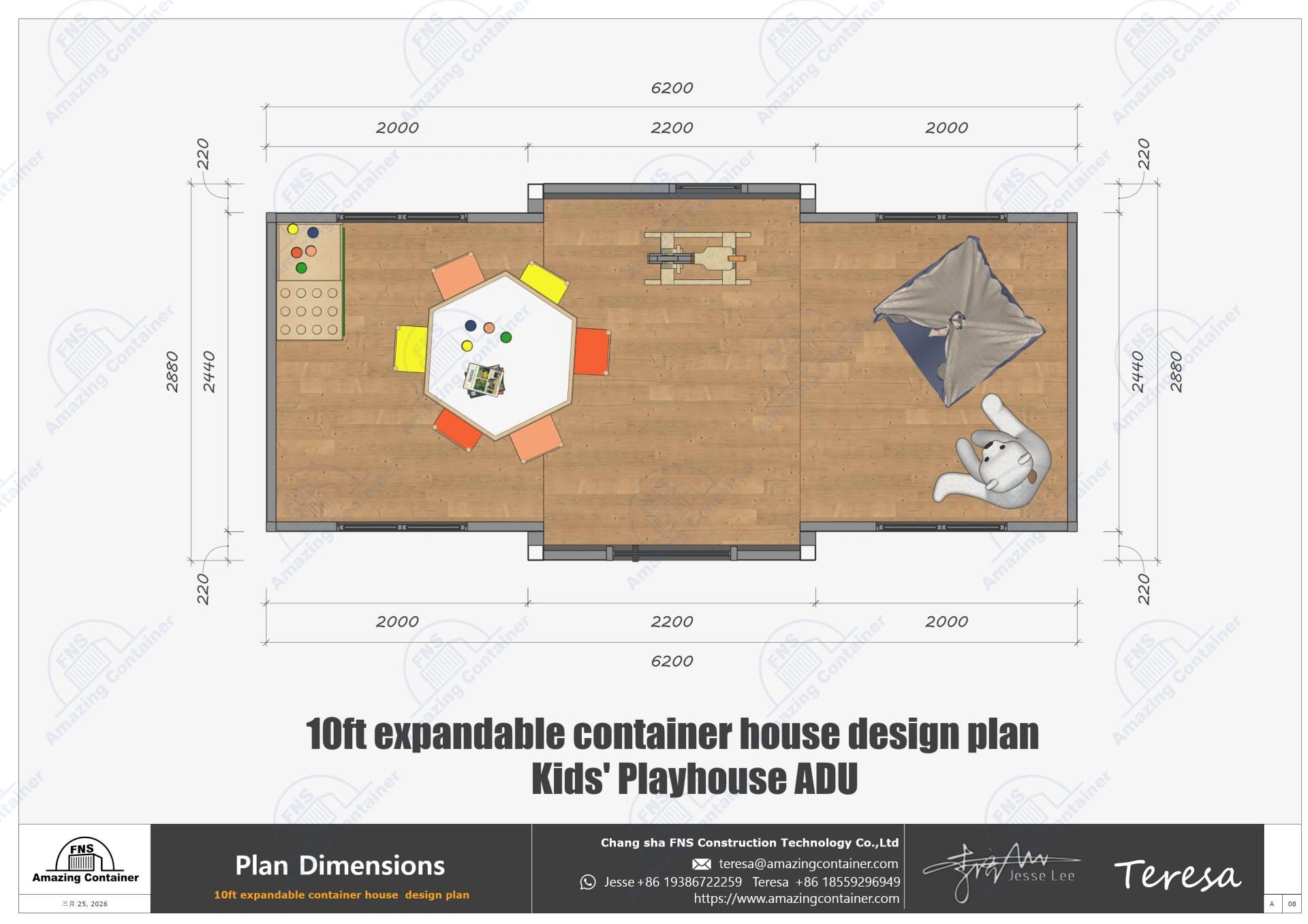

Kids’ Playhouse: A safe, insulated, and durable creative zone.
-

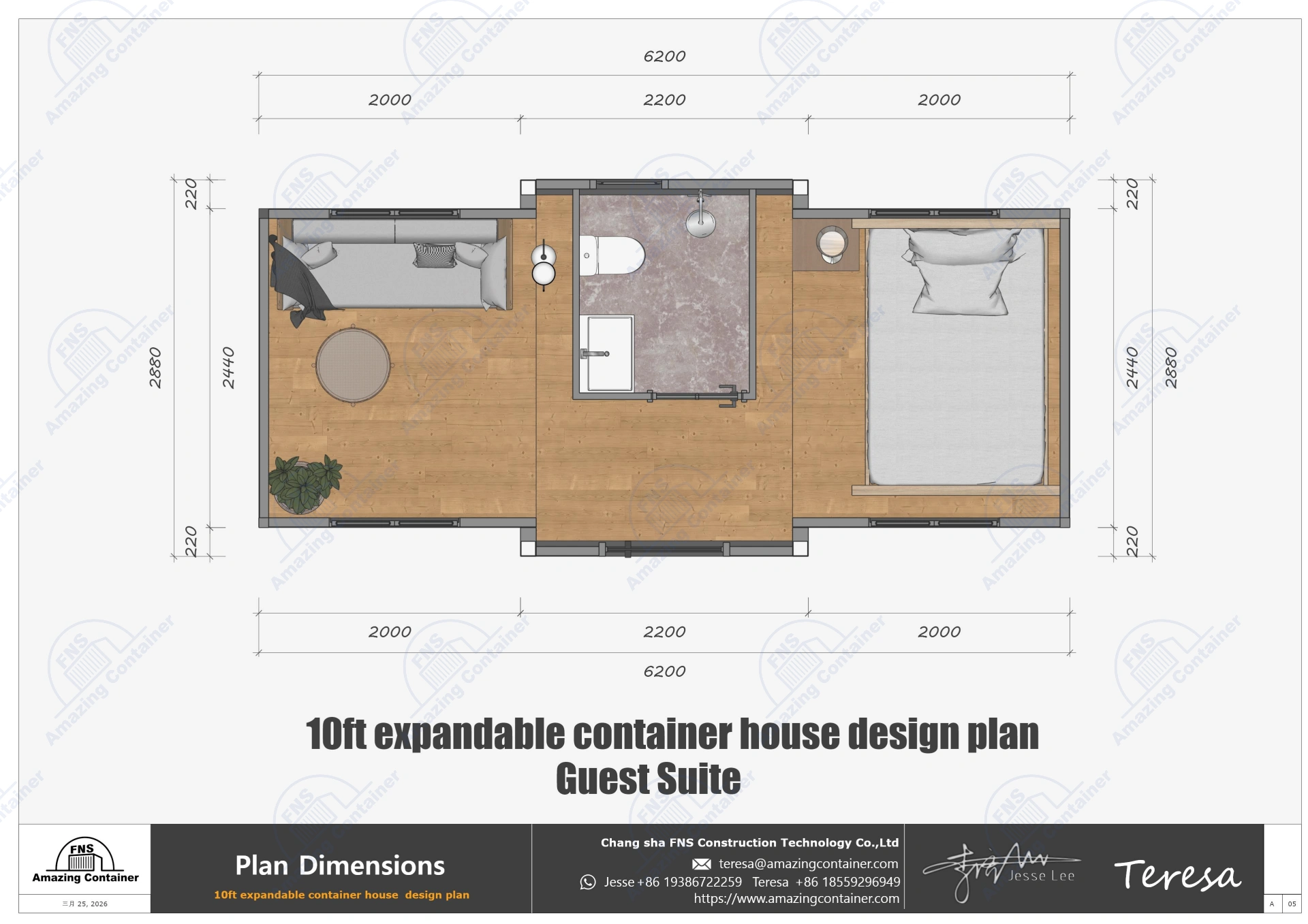

Guest Suite: An elegant detached bedroom for friends or family.
3. Residential-Grade Construction in a Small Package
Unlike standard garden sheds, our 10ft units share the same heavy-duty hot-galvanized skeleton as our 40ft Elite models. Featuring 65mm high-density fire-rated insulation and double-paned residential windows, it provides year-round thermal comfort and acoustic privacy. It is a “real house,” just miniaturized.

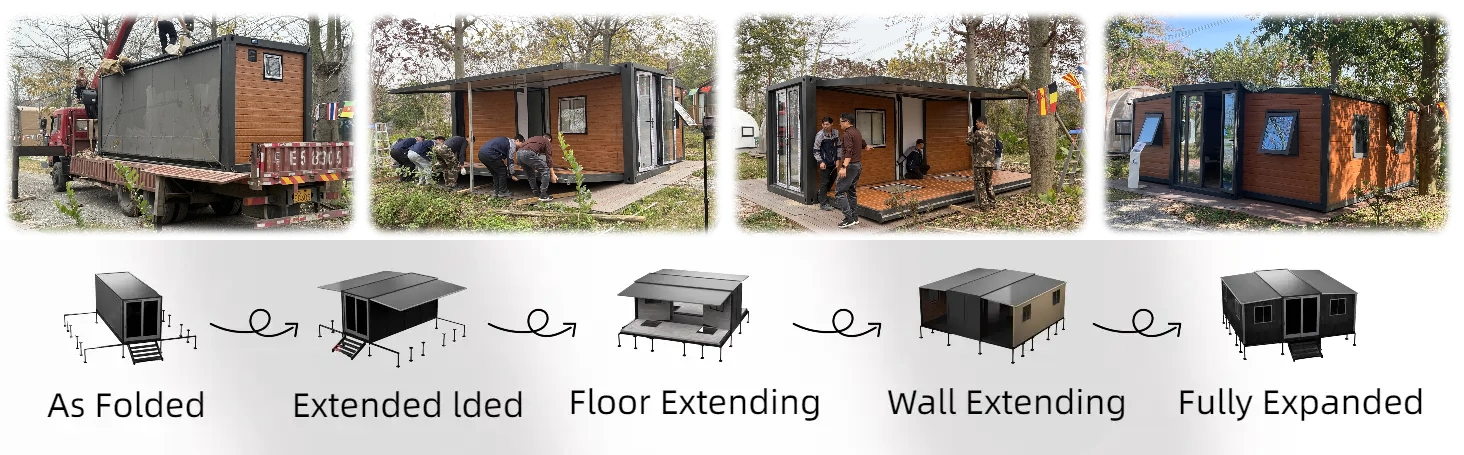

4. Rapid “Plug-and-Play” Setup (Under 30 Minutes)
Precision engineering means faster installation. With our 130mm galvanized embedded hinge system, the Micro-Series can be fully deployed by two people with minimal effort. Electrical systems are factory-integrated to UL, CE, or AS/NZS standards, allowing you to simply “plug and inhabit.”

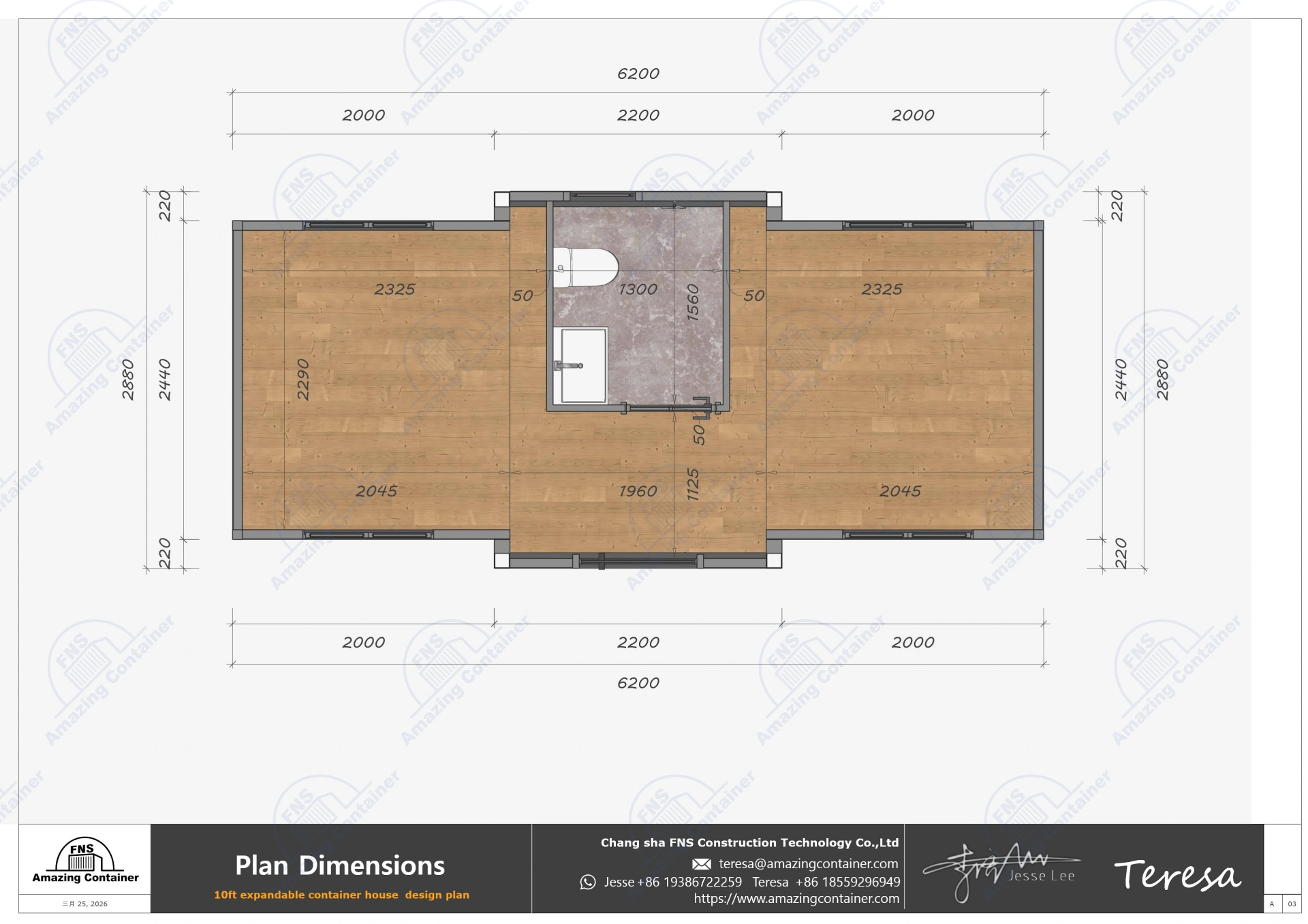

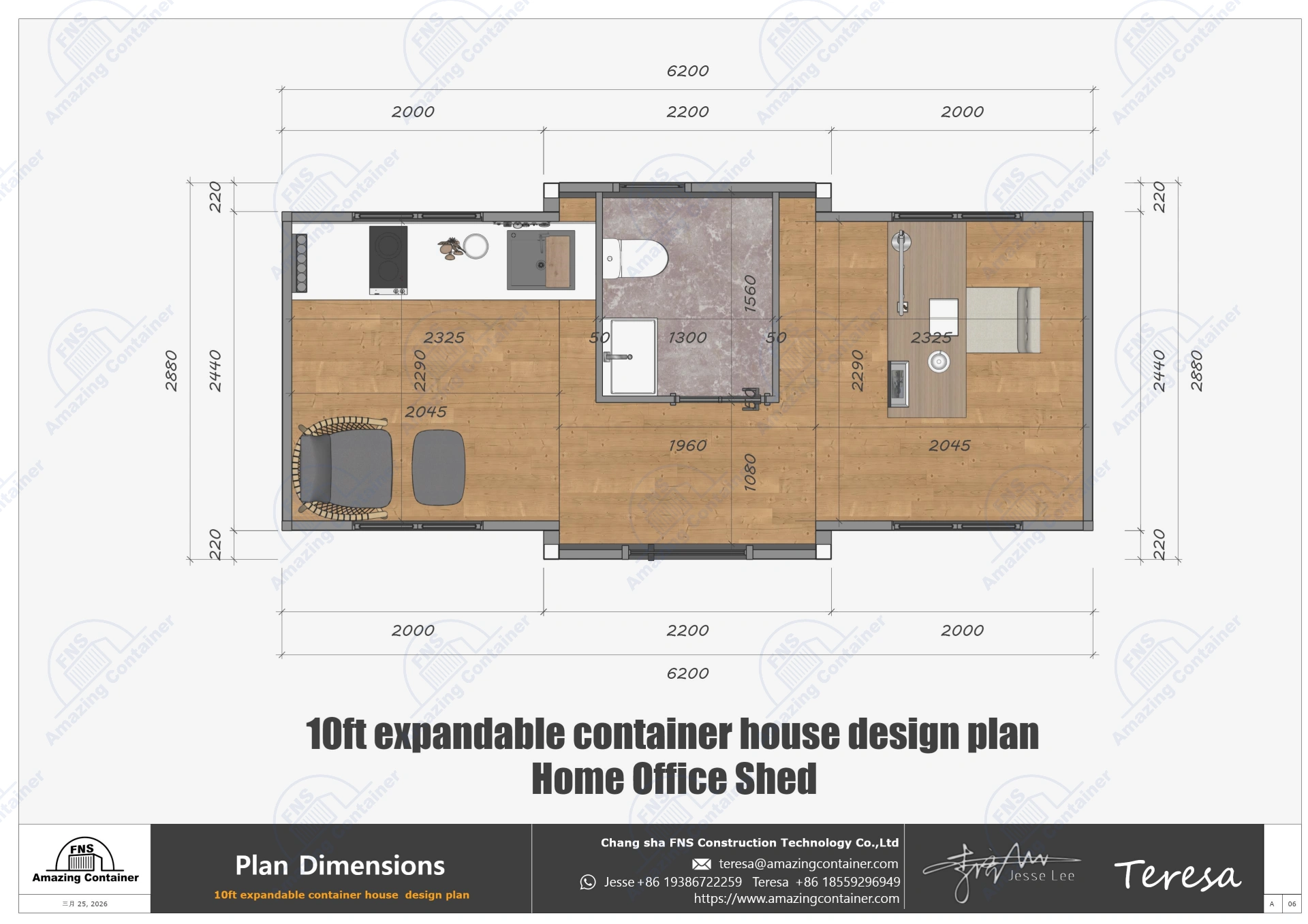

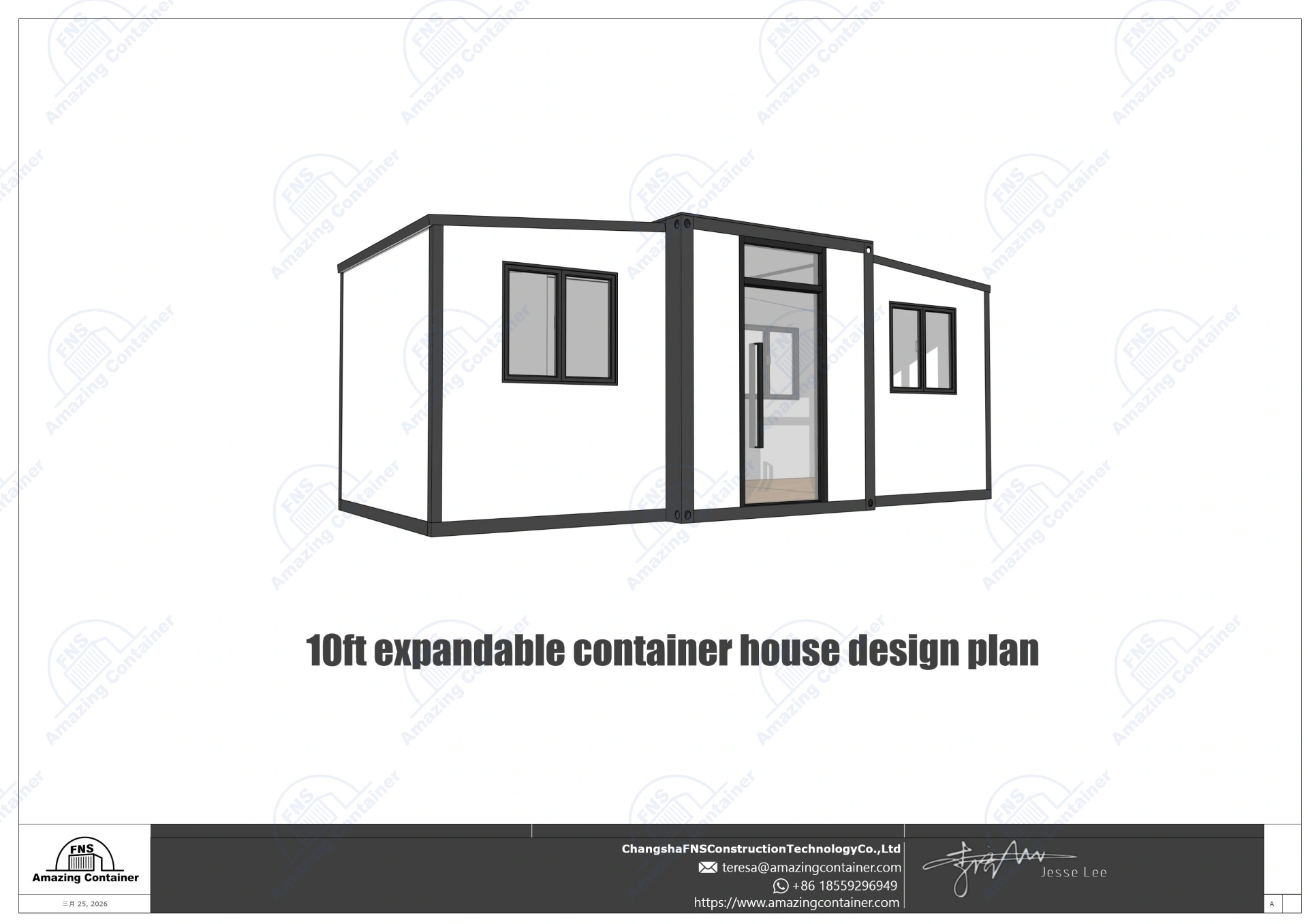

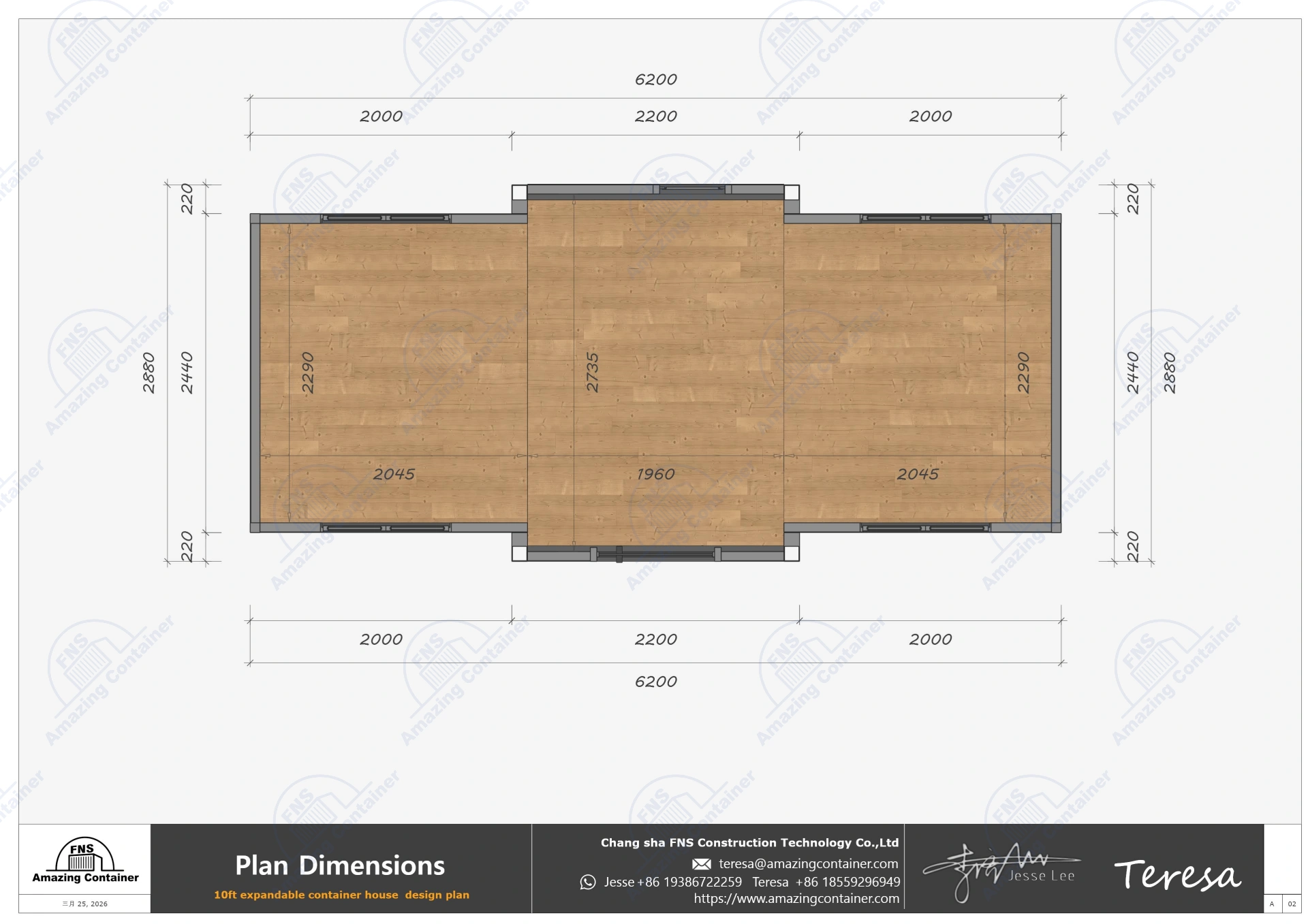

The choice of floor plan layout

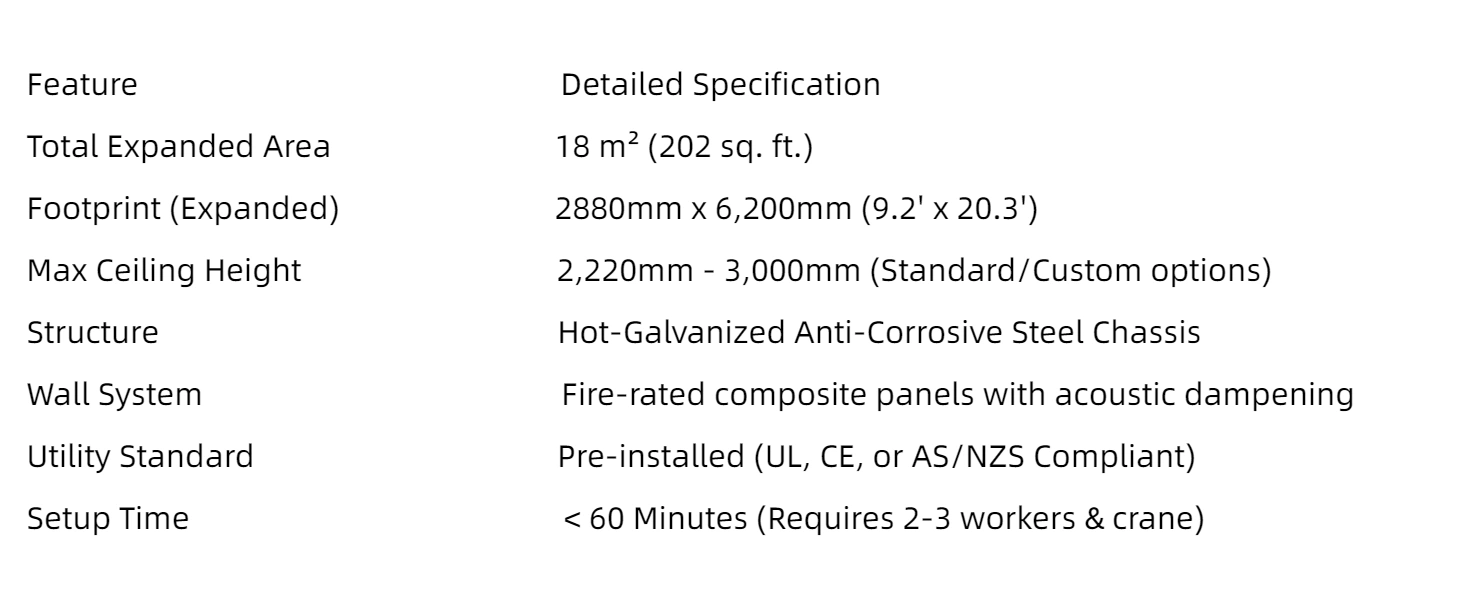

AmazingContainer™ | Full Technical Specifications
1. Structural Engineering
-

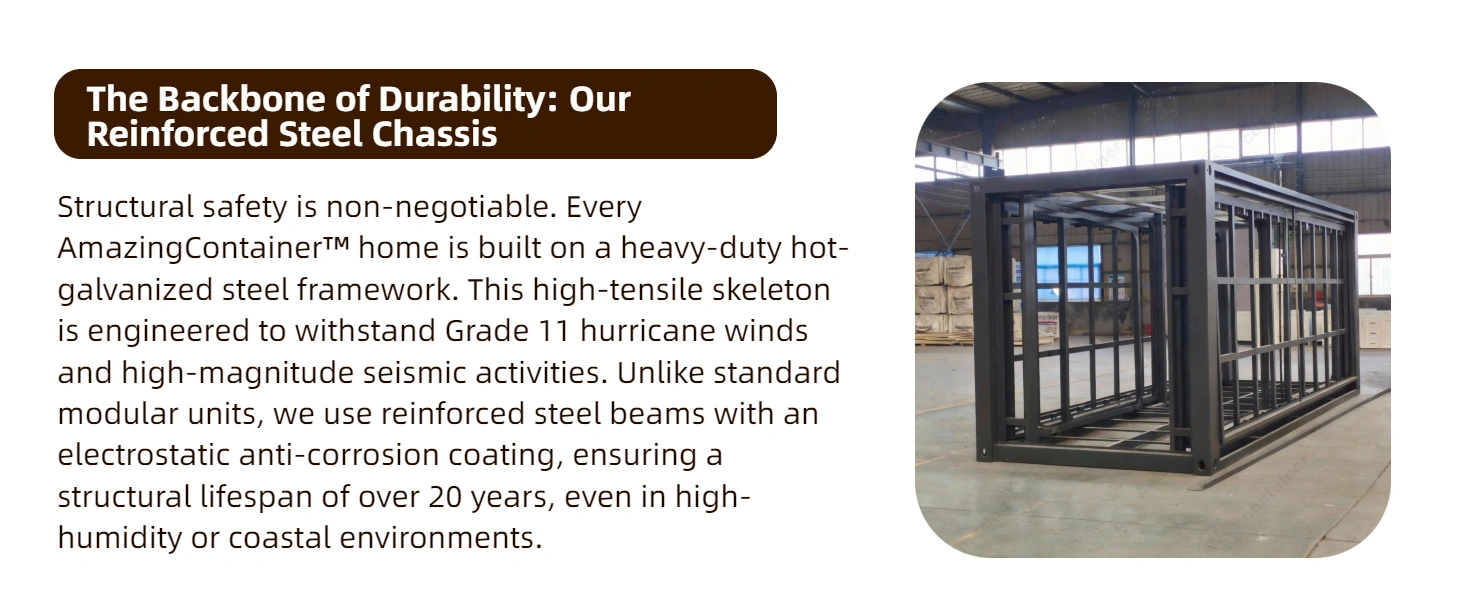

Main Chassis: Heavy-duty Hot-Galvanized Q235B Steel. (150mm x 100mm base beams).
-
Surface Treatment: Electrostatic powder coating + 3-layer anti-corrosion finish.
-
Expansion System: Proprietary 130mm heavy-duty galvanized embedded hinges with weather-seal gaskets.
-
Structural Lifespan: Designed for 20-25 years of permanent residential use.
-
Wind Load Resistance: Up to 28.4 m/s (Grade 11 / Category 1 Hurricane).
-
Seismic Rating: Magnitude 8.0 earthquake resistance.
2. Envelope & Insulation
-
Wall Type: High-performance thermal-bridge-free sandwich panels.
-
Standard Core: 65mm – 100mm fire-rated EPS (Rockwool and PU options available).
-
Fire Rating: Class A2 (Flame retardant and self-extinguishing).
-
Insulation Performance: High R-Value design for arctic/tropical climates.
-
Acoustic Insulation: Multi-layered wall structure providing up to 60dB sound reduction.
-
Roof Design: 6% drainage slope with 0.45mm corrugated steel veneer to prevent pooling.
3. Flooring System
-
Subfloor Substrate: 18mm high-density sustainable bamboo fiber board (Waterproof and termite-resistant).
-
Top Finish: 4.0mm – 8.0mm SPC (Stone-Plastic Composite) Luxury Vinyl Flooring.
-
Features: Formaldehyde-free, Grade T wear resistance, 100% waterproof.
4. Fenestration & Entry
-
Main Entrance: Thermal Break Aluminum Alloy frames with 5mm+12A+5mm Double-Pane Tempered Safety Glass.
-
Locking System: Biometric Smart Fingerprint & Keypad entry (optional).
-
Windows: Aluminum alloy casement or sliding windows with integrated insect screens and internal security locks.
-
Glass Type: Low-E coating available for superior UV and heat reflection.

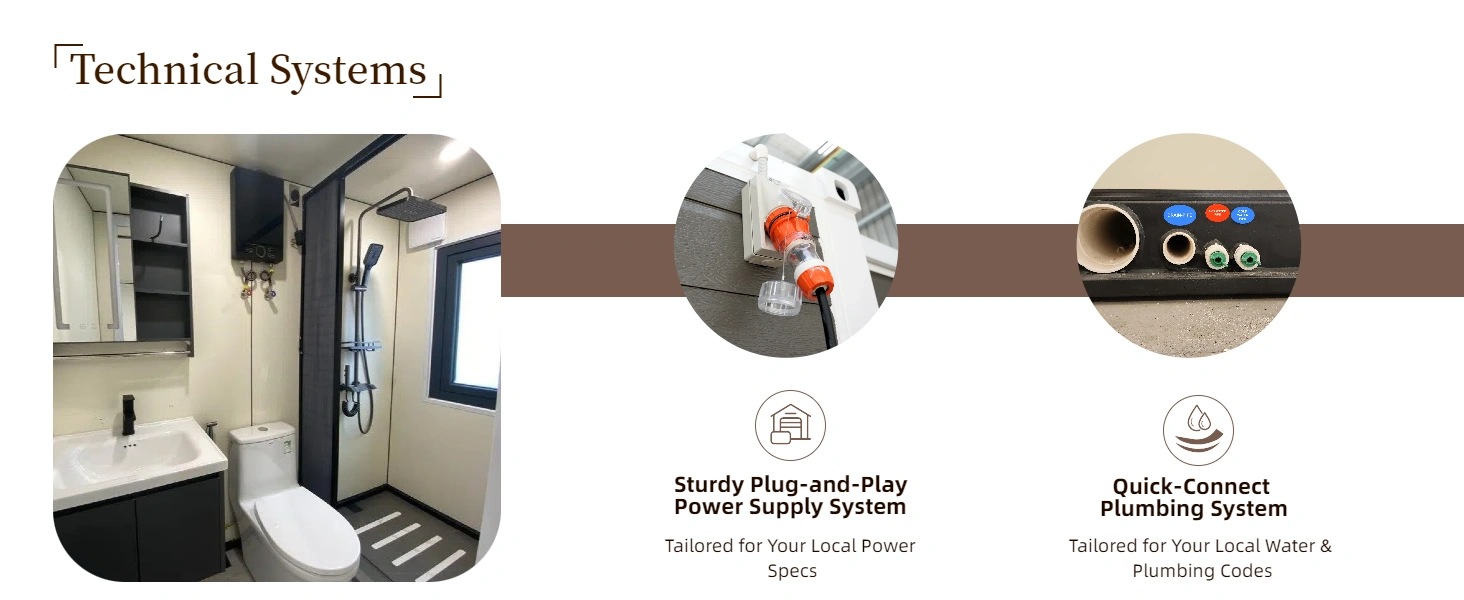

5. Utilities & Integration
-

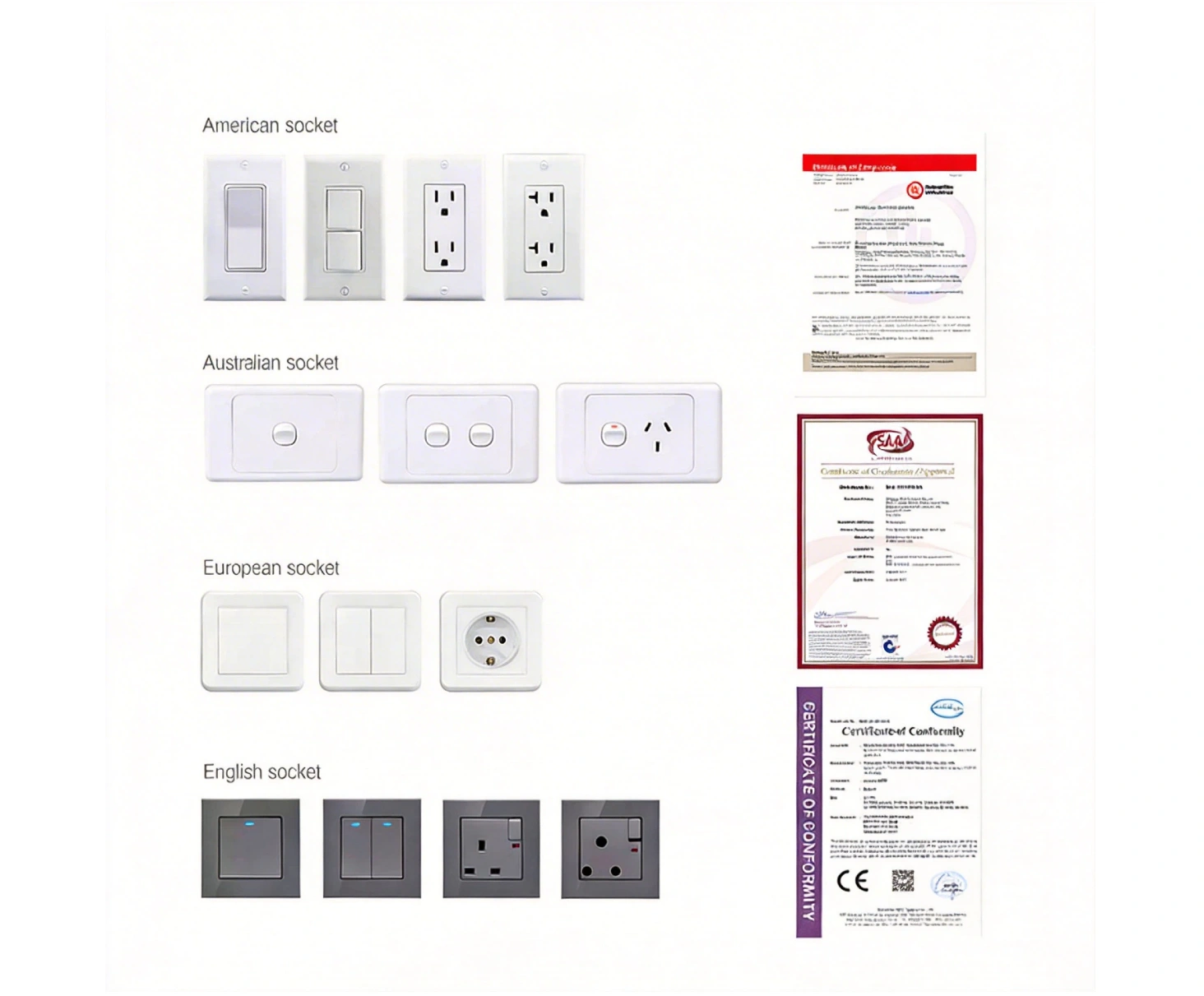

Electrical Standard: Pre-wired internal grid fully compliant with UL (North America), CE (EU), or AS/NZS (AU/NZ).
-
Safety Gear: Master circuit breaker box with RCD (Residual Current Device) protection.
-
Plumbing: Standardized PEX/PPR hot and cold water lines; pre-fitted external quick-connect ports.
-
Drainage: Built-in P-Trap and venting systems for odor prevention (Engineered for Western IPC codes).
📏 Size-Specific Dimensional Table
| Specification | 10ft Micro | 20ft Standard | 40ft Elite |
| External (Expanded) | 2880 x 5900 x 2480 mm | 5900 x 6200 x 2480 mm | 11800 x 6200 x 2480 mm |
| Internal (Expanded) | Approx. 193 sq. ft. | Approx. 410 sq. ft. | Approx. 822 sq. ft. |
| Shipping State | 2880 x 2200 x 2480 mm | 5900 x 2200 x 2480 mm | 11800 x 2200 x 2480 mm |
| Weight | ~2,500 kg | ~4,200 kg | ~6,500 kg |
| Ideal Use | Gym/Office/Pods | Guest Room/Airbnb | Family Home/Dorm |
🎨 Customizable Finishes
-
Exterior Options: Wood-Grain Metal Carved Panels, WPC Wood Slats, Modern Grey Metal Siding.
-
Interior Options: Carbon Crystal Panels, Bamboo Fiber Walls, Matte Pearl Finishes.
🚛 Global Logistics
-
Container Efficiency: 4 x 10ft units per 40HQ;
-
Setup Method: This unit can be easily unfolded by two adults; under 60 minutes for full deployment.
