AmazingContainer™ EC-N-30FT Innovative Design Expandable Home with Gabled Roof 56m² / 603 sq. ft.)
AmazingContainer™ Luxury 30ft Wood-Clad Modular Home
Features
Elevate Your Lifestyle with the 30ft Elite Series.
The AmazingContainer™ 30ft Elite Series offers a spacious 56m² (approx. 603 sq. ft.) of architecturally designed living space. Breaking the “box” mold, this innovative unit features a striking gabled porch system and premium wood-grain metal panels.

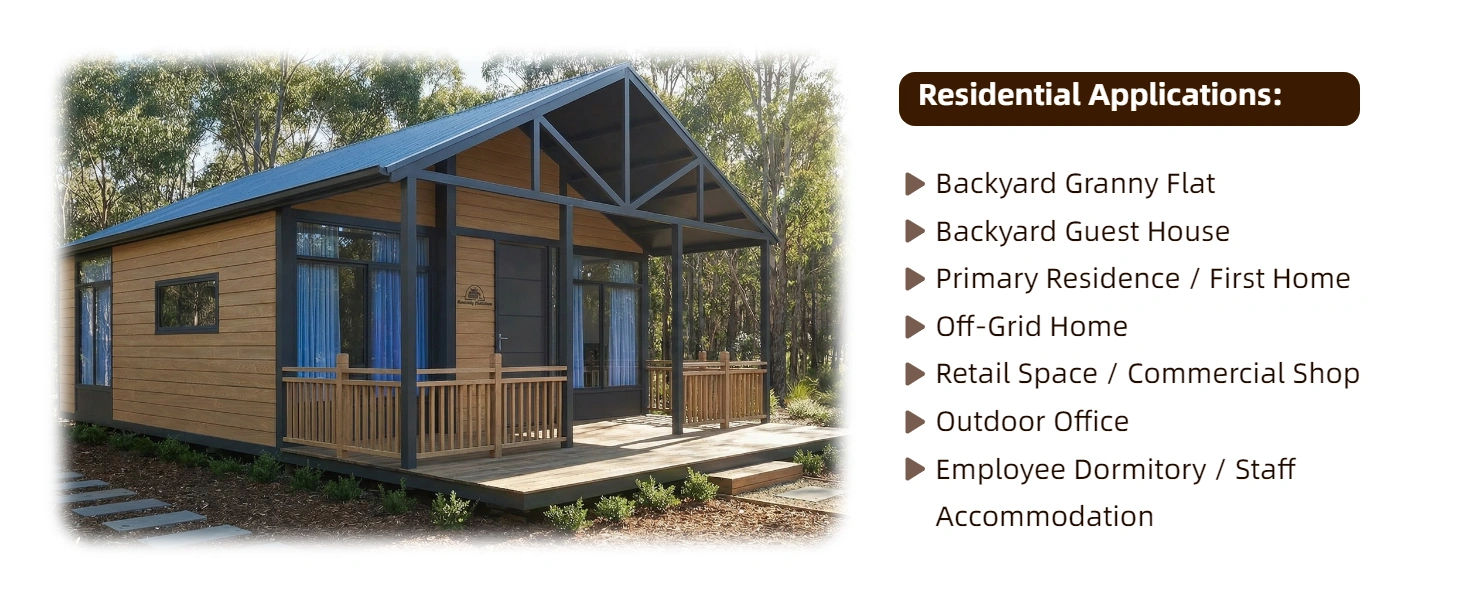

Engineered for permanent comfort, it includes high-ceiling interiors, pre-installed residential utilities, and a panoramic glass facade. Whether as a luxury Airbnb retreat, a spacious backyard ADU, or a modern scenic lodge, the 30ft model provides the perfect balance of massive living area and logistical ease.
-
Premium 30ft Footprint: Offers 50% more space than standard 20ft units, providing room for 2-3 bedrooms without the land requirements of a 40ft home.
-

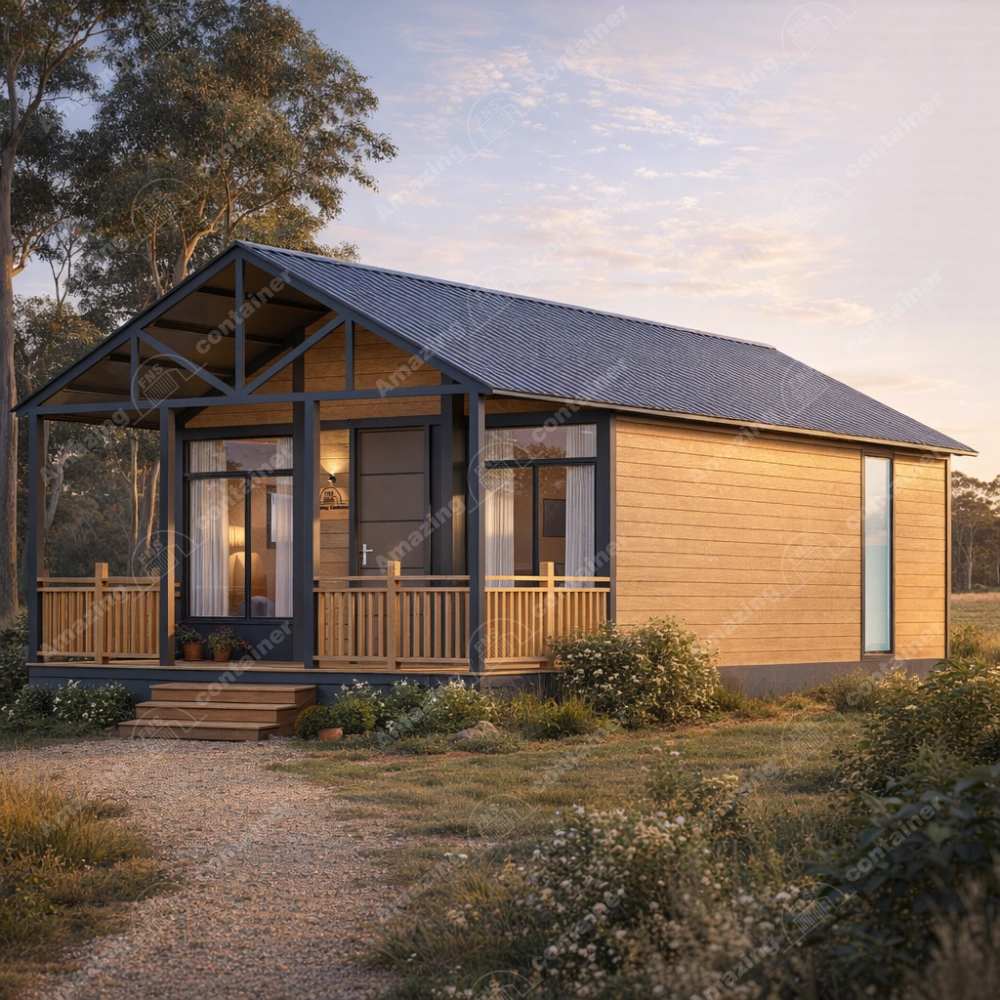

Signature Gabled Porch: An integrated sloping roof that extends into a functional veranda, perfect for outdoor relaxation and superior rain runoff.
-
Zero-Maintenance Wood Aesthetics: Features high-grade metal carved siding that delivers a natural timber look with A2 fire rating and zero rotting or warping.
-
Rapid Deployment Villa: Achieve a full-scale residential look in under 60 minutes with our precision-engineered folding system.
The choice of floor plan layout

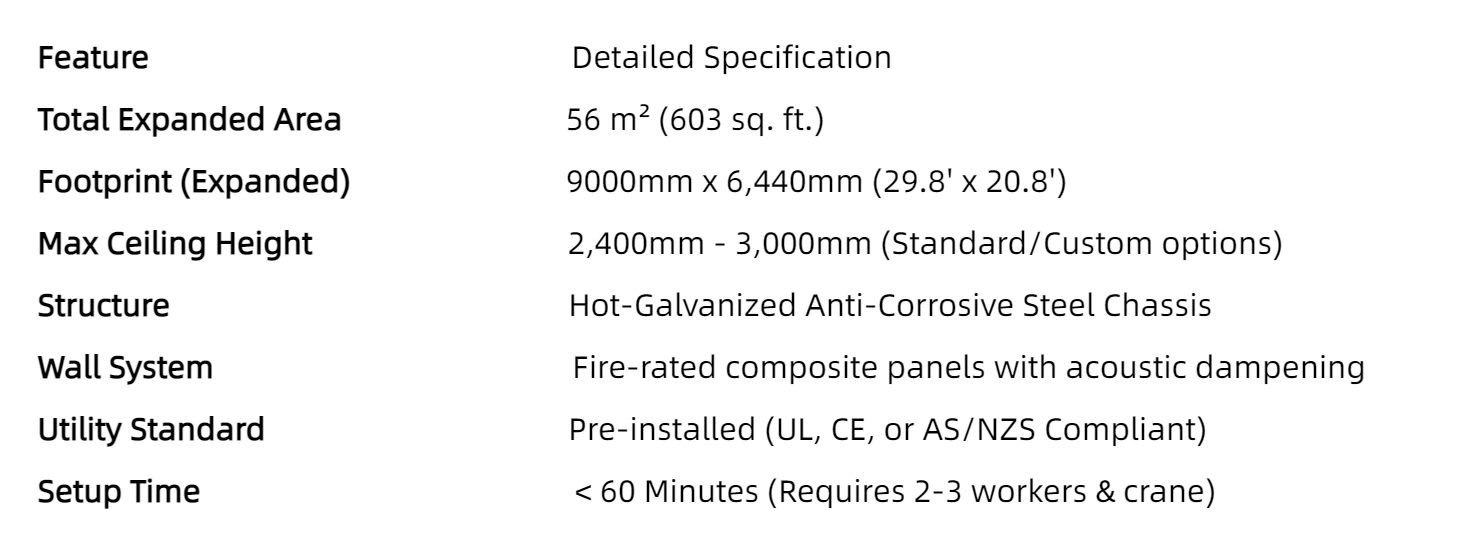

AmazingContainer™ Innovative Design 30ft Expandable Home with Gabled Roof | Full Technical Specifications
1. Advanced Roofing System
-
Roof Design: Architectural-grade asymmetrical sloped (pitched) roof. Specifically engineered for superior water drainage and debris shedding.
-
Material: 0.45mm – 0.50mm Corrugated Color-Coated Galvanized Steel veneer for maximum weather resistance.
-
Insulation Core: High-density 65mm EPS steel composite (PU/Rockwool options available) with integrated vapor barrier.
-
Performance: Rated for heavy snow loads and torrential rain. The 6%–10% gradient prevents water pooling and ensures zero-leak integrity at folding seams.
-
Gutter Integration: Hidden perimeter drainage channels to direct water away from the foundation.
2. Structural Engineering
-
Chassis & Frame: Heavy-duty Q235B Hot-Galvanized steel framework.
-
Anti-Corrosion: Electrostatic powder-coated finish with a marine-grade rust protection layer.
-
Folding Mechanism: Industrial 130mm galvanized precision embedded hinges with thick weather-stripping.
-
Wind Rating: Grade 11 (Up to 28.4 m/s).
-
Seismic Resistance: Magnitude 8.0.
3. Living Dimensions & Layout
-
Total Expanded Footprint: 9000mm (L) × 6440mm (W) × 2480mm (H).
-
Total Usable Living Area: Approx. 56m² (400 sq. ft.).
-
Transport Configuration (Folded): 9000mm (L) × 2200mm (W) × 2480mm (H).
-
Shipping Compatibility: Optimized for 1 units per 40HQ ocean container.
4. Wall & Thermal Envelope
-
Standard Siding: 65mm fire-rated EPS Color Steel Composite Panels (White horizontal lap siding finish as shown).
-
Fire Rating: Class A2 (Flame retardant).
-
Acoustics: Multi-layer construction providing up to 45-60dB noise reduction, ideal for quiet home offices or art studios.
5. Luxury Fenestration
-
Main Entrance: Double-pane Tempered Glass French doors with bold black aluminum alloy frames.
-
Windows: Residential-grade black aluminum sliding/casement windows with high-density insect screens.
-
Glass Type: 5mm + 12A + 5mm double-glazed tempered safety glass with Low-E coating option.
6. Interior & Utility Integration
-
Flooring: 18mm high-density sustainable bamboo fiber board + 4.0mm SPC Luxury Stone-Plastic Flooring.
-
Electrical System: Built-in hidden conduit, pre-wired for UL (US), CE (EU), or AS/NZS (AU/NZ) compliance.
-
Plumbing: Pre-installed PPR hot/cold water supply and PVC drainage with integrated P-trap for odor protection.
-
Bathroom Suite: Integrated shower, low-flow toilet, and designer vanity cabinet included.
📏 Size-Specific Dimensional Table
| Specification | 20ft Micro | 30ft Standard | 40ft Elite |
| External (Expanded) | 5900 x6440 x 2480 mm | 9000 x 6440 x 2480 mm | 11800 x 6200 x 2480 mm |
| Internal (Expanded) | Approx. 410 sq. ft. | Approx. 603 sq. ft. | Approx. 822 sq. ft. |
| Shipping State | 5900 x 2200 x 2480 mm | 9000 x 2200 x 2480 mm | 11800 x 2200 x 2480 mm |
| Weight | ~5000 kg | ~6,800 kg | ~8,600 kg |
| Ideal Use | Gym/Office/Pods | Guest Room/Airbnb | Family Home/Dorm |
🎨 Customizable Finishes
-
Exterior Options: Wood-Grain Metal Carved Panels, WPC Wood Slats, Modern Grey Metal Siding.
-
Interior Options: Carbon Crystal Panels, Bamboo Fiber Walls, Matte Pearl Finishes.
🚛 Global Logistics
-
Container Efficiency: 2 x 20ft units per 40HQ;
-
Setup Method: This unit can be easily unfolded by two adults; under 60 minutes for full deployment.
